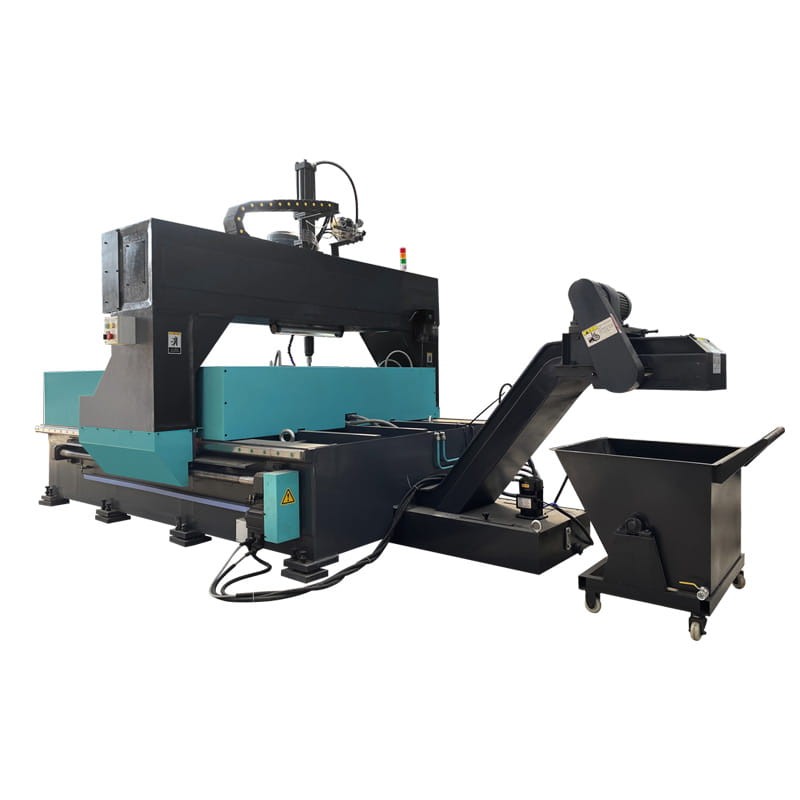

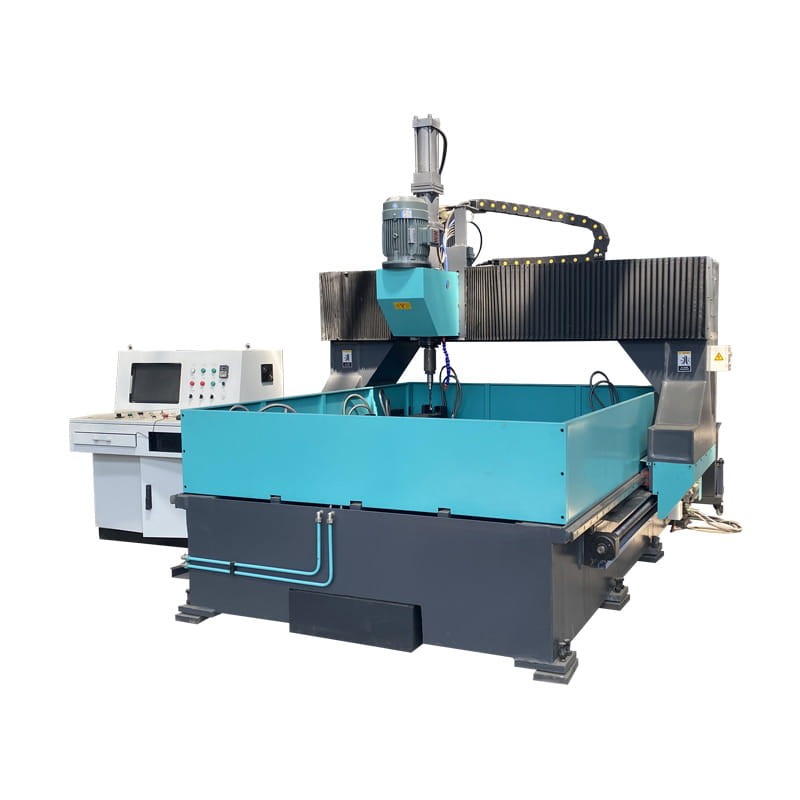

Gantry Type CNC Plate Drilling Machine

CNC Plate Drilling Machine is mainly used for drilling and milling of connecting plates and floor board in steel structures, iron towers, bridges, mechanical processing and other industries;


Gantry Type CNC Plate Drilling Machine

CNC Plate Drilling Machine is mainly used for drilling and milling of connecting plates and floor board in steel structures, iron towers, bridges, mechanical processing and other industries; CNC Plate Drilling Machine can drill through holes,blind holes,step holes,holes chamfering,and workpice automatic clamping.

cnc plate drilling machine

The Details Show


cnc gantry drilling machine

1. Power head spindle

Driven by a precision servo spindle motor, the speed can be adjusted steplessly according to the needs. The spindle is equipped with a pneumatic tool cylinder for clamping drill taps or milling cutters through a BT40 chuck to realize rapid tool change.


cnc drilling machine for steel

2.Server spindle motor

The 5.5KW servo spindle motor power is matched with the BT40 high-precision spindle speed, and the perfect combination of precision, greatly improves the drilling efficiency.


cnc drilling machine

3.Beam and column structure

High temperature annealing before processing, secondary annealing for semi-finishing to remove stress, and then finishing, can ensure the stability of the machine tool accuracy.


drilling cnc machine

4.CNC system

It uses a 10.4-inch screen, the point drive is driven by a high-precision absolute value series servo motor, and it is equipped with all high-speed handwheels, which is easy to operate.


cnc steel plate drilling machine

5.High precision guide rail

The precision design is easy to install, and there are rigidity and heavy load capacity all around, with high precision and stable operation.


cnc metal drilling machine

6.Circulating cooling device

There is a cooling pump installed on the side, the outlet of which is connected with the central water filter system with a hose, the coolant flows into the chip conveyor, the chip conveyor lift pump pumps the coolant into the central water filter system, and the high-pressure cooling pump then filters the coolant Circulating supply for spindle drilling cooling.


The Product Parameters

Models

Phd2016

Processing range(mm)

2000*1200 2000*1600 2000*2000 3000*1600

Thickness(mm)

15-100

Number of spindle

1

Spindle model

Morse 4# cone hole

Spindle speed

120-560

Feed mode

servo motor feed

Feed stroke(mm)

240

Drilling hole diameter(mm)

Φ12-Φ50 (OptionalΦ12-Φ63)

Motor power(KW)

5.5 (Optional7.5)

Clamping cylinder number

12

Clamping force(kn)

7.5

Clamping method

Gantry double-sided button control

Hydraulic pump pressure(MPA)

6

Control method

SIEMENS CNC system/plc+PC


Cutting sample

drilling cnc machines
