NO. | Main parts of machine | Brand & model | Manufacturer brand |
1 | Equipment body | China | |

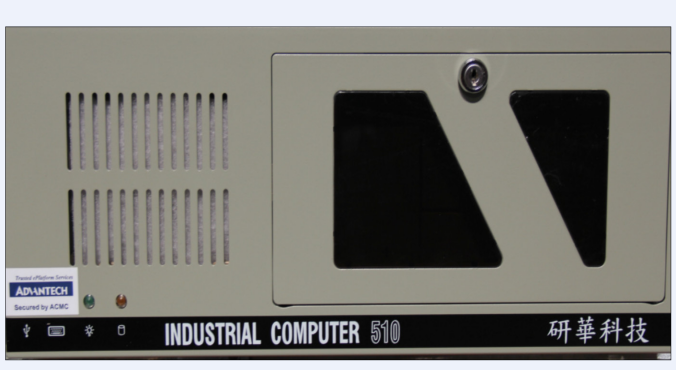

2 | Industrial control computer | Advantech | China |
3 | controlling software | YOMI | China |
4 | Servo drive motor | Panasonic servo | Japan |
5 | Plasma power source | Hypertherm105A | USA |
Pipe Cutting Special System
The system uses Pro-face's GP-2301HL handheld graphical operating interface. It has world-class safety protection functions: 3-position enable switch, 3-contact emergency stop switch, and vibration function;
System humanized graphical user interface; real 3D modeling and synchronous simulation; WYSIWYG(What you see is what you get) file processing; 3D toolpath simulation effect; compatibility with previous software of YOMI; classic menu structure of plane cutting machine; powerful function system debugging Tools; cost-effective mid-to-high-end pipe cutting machine control system.
HYD-XPTHC

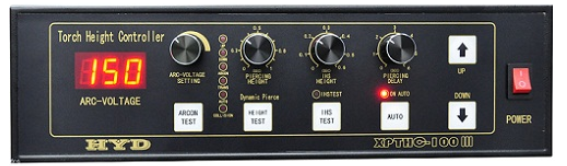

Real-time height adjustment, using linear displacement sensor to collect external tube ellipticity height data, and highly dynamic real-time tracking through the control system to ensure cutting accuracy.
Purpose and characteristics

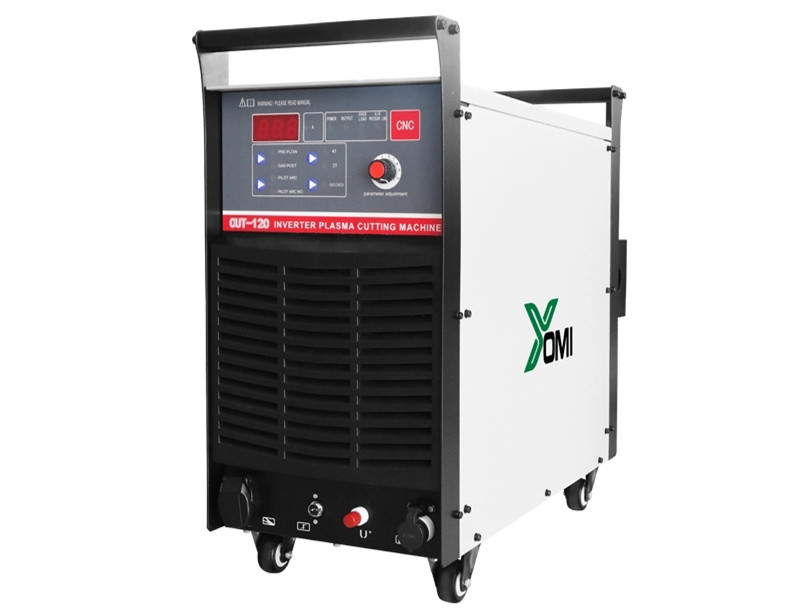

The LGK series air plasma cutting machine is a newly designed metal processing equipment, which is designed and manufactured using the advanced insulated gate power transistor IGBT and pulse width modulation (PWM) soft switch full bridge technology at the end of the 20th century. This series of cutting machines can cut all metal materials, especially suitable for cutting high alloy steel and non-ferrous metals that can not be cut by flame cutting method. This series of cutting machines have ideal static external characteristics and good dynamic characteristics, with high frequency arc starting function
In addition, at the beginning of the design, the economics of using the cutting machine are fully considered. The power efficiency is as high as 90% and the power factor is 0.89. In the end, this series of advanced designs passed the most rigorous tests and reached the following standards: CCC-in line with GBT15579.1-2013 standards; enclosure protection level: IP21S, suitable for field operations, insulation level: F level, and waterproof And foreign objects enter the welding machine.
Basic technical parameters | ||
product model | cut 120 | cut 200 |
voltage range（V) | three-phase 380/400±15% | |
frequency（HZ） | 50/60 | |
Rated input power capacity | ||
Rated input current | ||
No-load voltage（V) | 330 | |
Current adjustment range（A) | 20-120 | 20-200 |
Machine efficiency（%） | 90 | |
Power factor（%） | ≧0.88 | |
Rated negative continuous rate（%） | 100% | |
Max cutting thickness（mm） | 40 | 60 |
Mix cutting thickness（mm） | 20 | 30 |
Quality cutting thickness（mm) | <14 | <25 |
Protection level | IP235 | |
machine weight(kg) | 47.5 | 86 |
Dimensions(mm) | 657*316*660 | 750*370*850 |
Application
