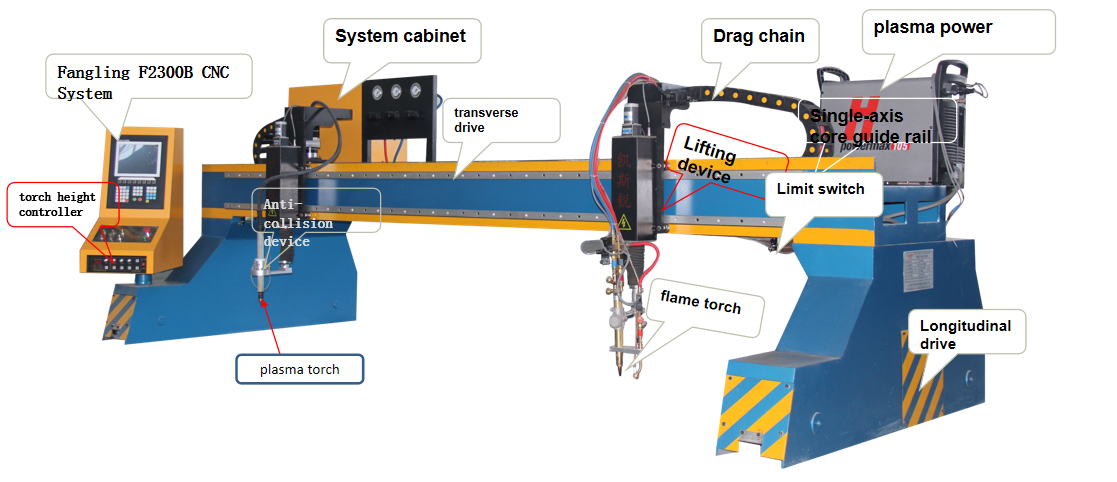

KR-PL CNC gantry cutting machine is a high-efficiency automatic steel plate cutting and cutting device developed by our company for supporting the cutting of various shapes of metal sheet planes. It adopts the gantry structure type, bilateral drive cooperates with the rack and pinion, and has a stable structure. The characteristics of good rigidity and high speed, the hollow box design has good heat dissipation;The cutting surface has high roughness and precision, and small deformation; both vertical and horizontal directions are used High-precision imported reducer improves the running accuracy of the machine tool from every link. The gap-free gearing transmission mode is smart and smooth at high speed, and the cutting accuracy is high; the gear rack is made of special gear racks for the machine tool, which has a large bearing capacity and high transmission accuracy.
(1)KR-PL CNC gantry cutting machine is a high-efficiency automatic steel plate cutting.
(2)It can be cut longitudinally and horizontally, or in any direction of the arc curve.
(3)The scope of processing is roughly divided into several categories: width 3m、4m、5m、6m、7m、7.5m
Basic configuration
1 | Machine size | 3000mm |
2 | Longitudinal guide rails length | 12000mm |
3 | Cnc plasma torch | 1 group |
4 | THC | 1 group |
5 | Flame torch | 1 group |
6 | Automatic ignition | 1 group |
7 | Torch lifter | 2 groups |
8 | Drive mode | Servo Bilateral drive |
9 | Pipeline transmission | Horizontal chain, vertical chain |
10 | Central gas gathering control system | 1 Set |
11 | System, console direction | According to user requirements |
12 | Buyer responsible | The construction of cutting platforms, heavy beams, installation site cement foundation, vertical pipeline transmission and other basic work will be installed by the buyer, and the supplier will provide drawings to guide |
