Advantages：High efficiency, high cutting precision, easy operation, compact structure, overall tempering, fully eliminate welding stress, thick appearance, stable and reliable performance.
Scope of Application：Machine manufacturing, shipbuilding, pressure vessels, construction machinery, mining machinery, power, bridge construction, steel, and other industries.

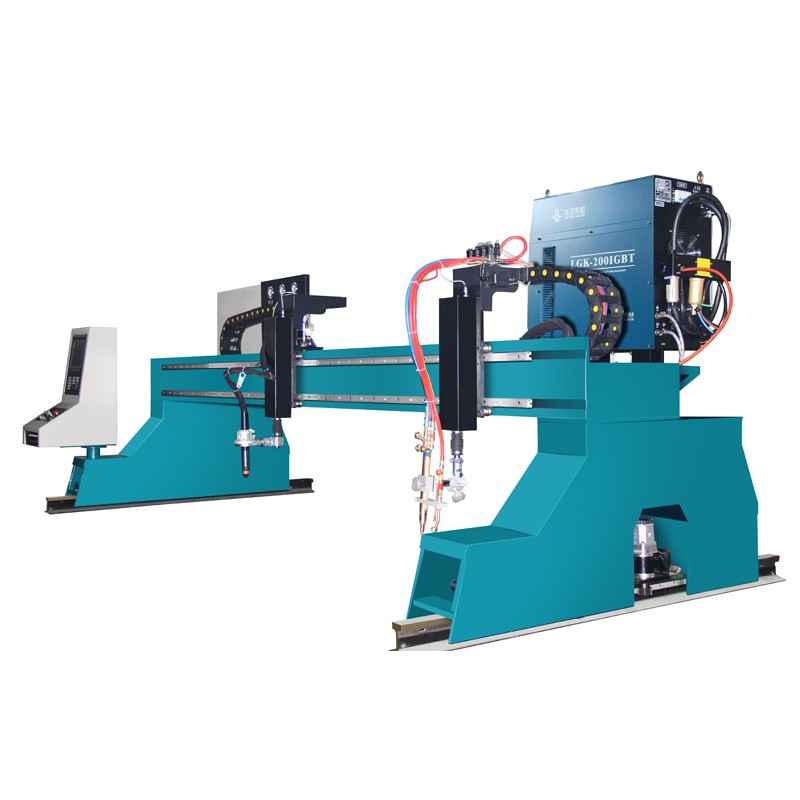

Gantry type plasma cutting machine is the main machine in industry workshop. Its quality and precision will decide the level of your products directly. Choose a high quality gantry type cnc plasma cutting machine is important!
The Product Parameters
| Standard type | 4*10m Effective cutting area:3.15m*8m |
| Cutting method | Flame/ Plasma |
| Cutting Thickness | Flame:6-60mm; Plasma:1-25mm |
| Cutting length | Can be customized |
Cutting speed | Flame 20-700mm/Min Plasma 500-3500mm/min |
| Cutting width | 3m,can be customized |
| Plasma torch anti-collision protection system | Yes |
| Driving method | Servo |
| Cutting length accuracy | ±1.0mm |
The frame is welded by 8mm steel plates and it adopts hollow welding process to facilitate heat dissipation and prevent thermal deformation.

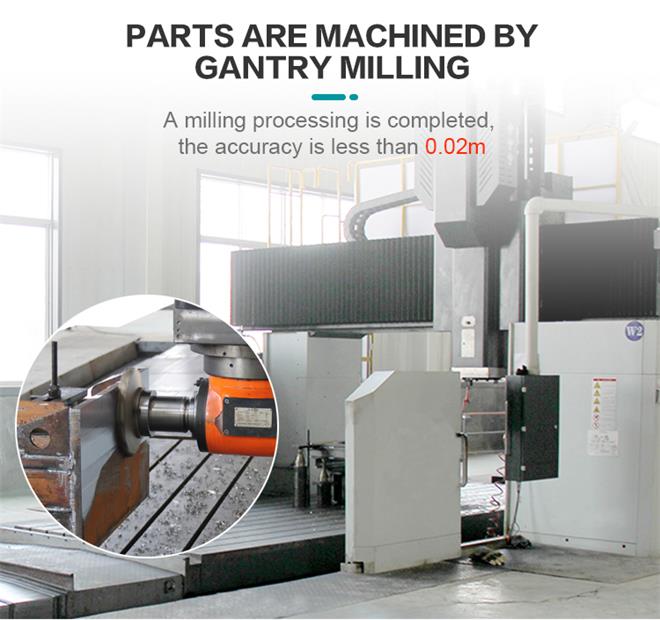

The front beam is welded by 20mm steel plates，the rack groove and guide groove are processed by large gantry milling machine at one time to ensure the parallelism and straightness of machine and improve cutting accuracy.
The longitudinal drive adopts bilateral drive with built-in Japanese Panasonic 750W motors, the use of non-clearance soft fitting device can effectively reduce gear bite error, and also avoid excessive wear caused by iron chips .
The horizontal transmission adopts Japanese Panasonic 400W servo motor ,main torch drives auxiliary torch to move by steel wire rope. This transmission mode has low failure rate and strong torsion resistance. the steel wire rope is easier to replace and maintain than steel belt,and it will not excessively delay customer's construction period.

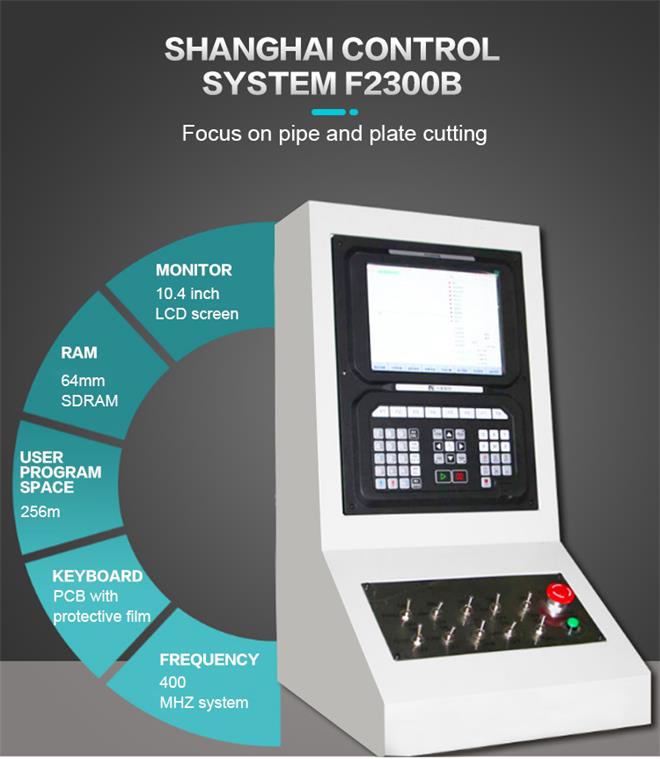

It adopts Shanghai Fangling 2300B flame/plasma CNC cutting system, multi-function Chinese, English and other language menus, easy to operate.
Flame, plasma CNC cutting torch and THC can be configured according to customes’ requirement;
It support any nesting software .
It can proofing and mass production of complex graphics, eliminating the need for complex punching dies, saving proofing time and cost .

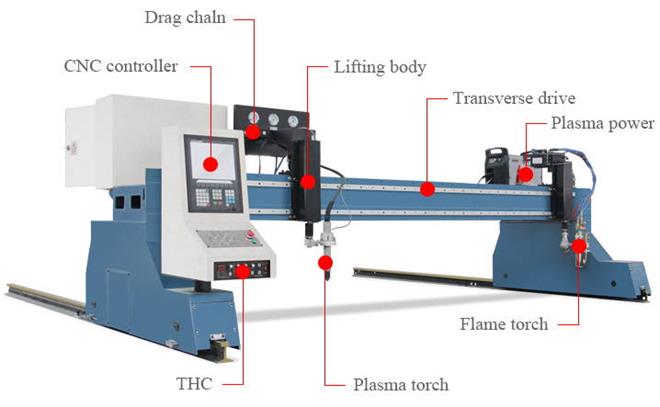

Product Details

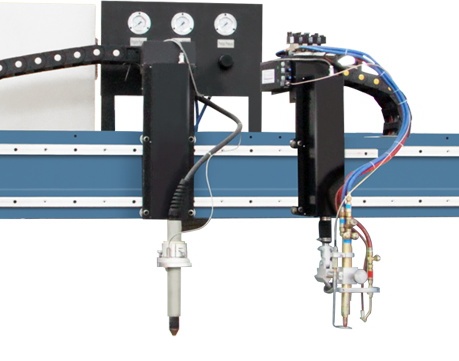

1. Flame and plasma two cuting methods
Equipped with flame and plasma cutting torches,can be adjusted according to cutting material

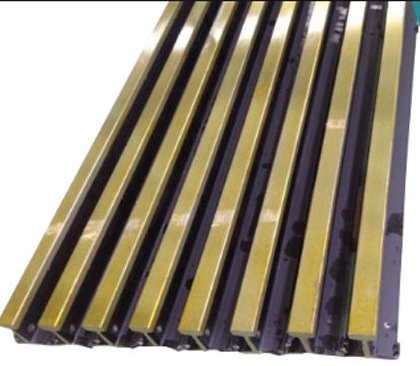

2.High strength heat treatment guide rail
High accuracy, strong load capacity

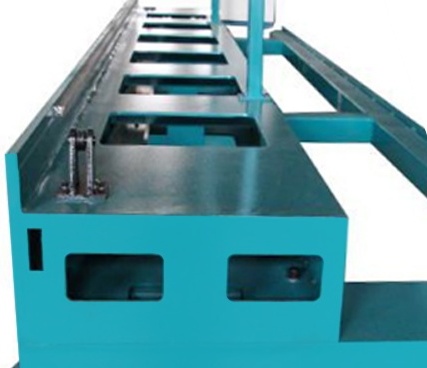

3. Hollow design welding Steel plate welded frame
Convenient for heat dissipation,make sure stable operation.Blasting coating treatment,more long service life.

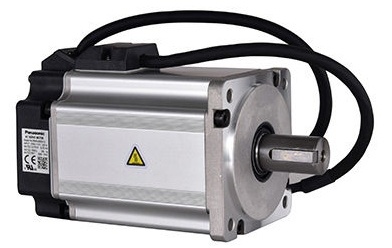

4.Japanese Panasonic serve motors
Original imported, make the machine running smoothly.

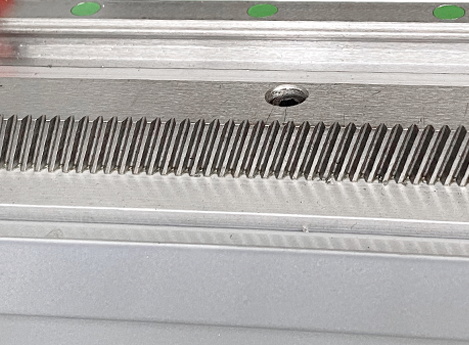

5.High precision rack and gear
High transmission accuracy,ensure cutting accuracy

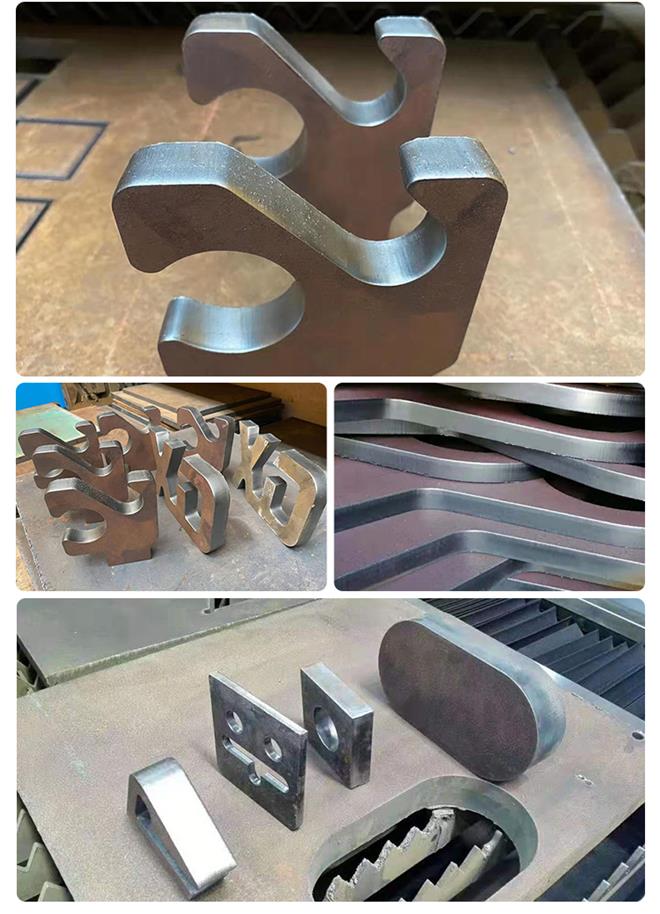

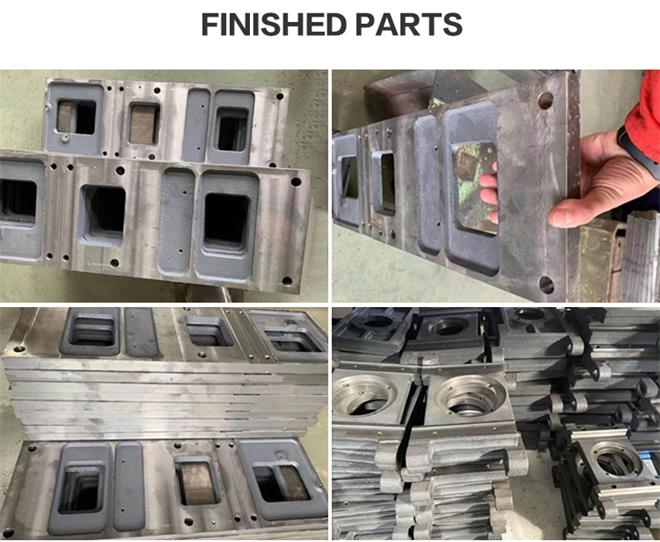

Cutting Sample

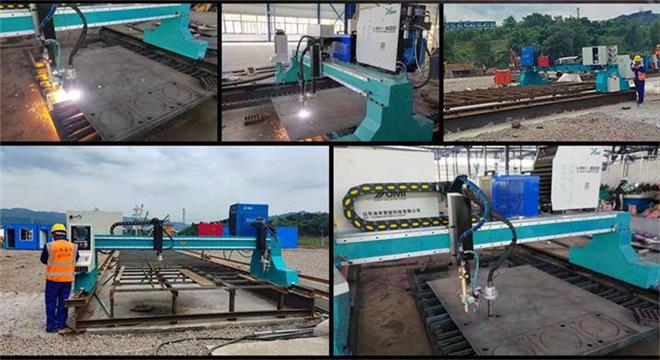

Customer Site
Packing＆Shipping
