CNC Cutting Machine Electric Parts

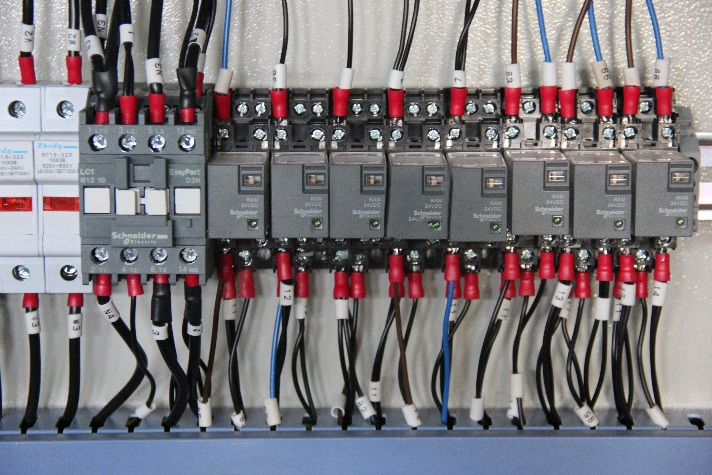

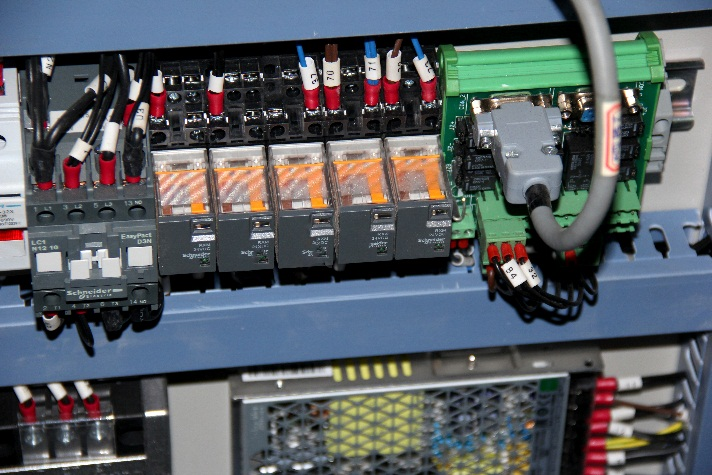

1.Advantages of Schneider Electric Parts

Equipment electrical design uses Schneider low-voltage electrical component products

Due to the reliable performance of Schneider products, our low-voltage appliances on our equipment will basically give priority to Schneider products, whether users are European companies or Japanese companies, Schneider products are more recognized.

(1)Schneider's low-voltage electrical appliances have a high market share in China, and it includes imported product series and domestic series, and their performance is very reliable. The product has good compatibility and expansibility. For example, there is a mature control scheme for load control. Various low-voltage electrical appliances contain a variety of options, adapt to variety of complex installation and use environment.

(2）The machine adopts core components such as automatic circuit breakers/contactors/relays/DC switching power supplies to improve the stability of equipment operation.

(3）The technical service of using branded spare parts is guaranteed, and technical online service support is provided.

2.Reducer advantages

Planetary reducer can mainly reduce the speed of motor while increasing the output torque.

(1)The internal gear of the planetary reducer adopts 20CrMnTi carburizing quenching and grinding teeth. It has the characteristics of small size, light weight, high load capacity, long service life, stable operation, low noise, large output torque, high speed ratio, high efficiency and safe performance. It has the characteristics of power splitting and multi-tooth meshing.

(2）Light weight, small size, large transmission ratio range, high efficiency, stable operation, low noise, strong adaptability, etc.

(3）The reducer adopts involute planetary gear transmission, which reasonably utilizes internal and external meshing and power distribution

(4) The gears are all carburized and quenched to obtain a high-hardness and wear-resistant surface. All gears are ground after heat treatment, which reduces noise and improves efficiency and service life of the whole machine

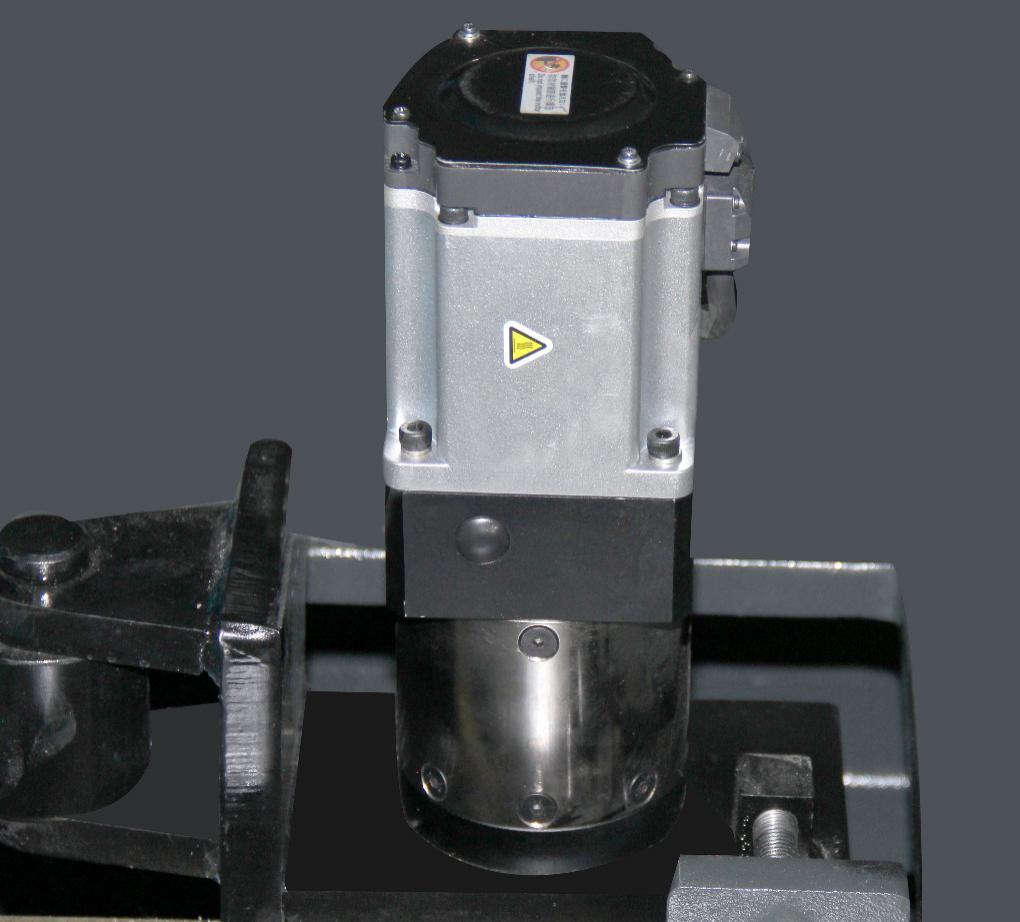

3.Advantages of Japanese Panasonic Servo Motors

(1)High motion accuracy: can achieve closed-loop control of position, speed and torque; overcome the problem of stepping motor out of step; with encoder feedback in time, read data to compare position accuracy.

Speed: good high-speed performance, generally rated speed can reach 1500 ~ 3000 rpm.

(2)Adaptability:It has strong anti-overload capability and can withstand three timest the load of rated torque, especially suitable for occasions with momentary load fluctuations and quick start requirements.

(3)Stability: The low-speed operation is stable, and the low-speed operation will not produce a stepping phenomenon similar to a stepper motor. Suitable for occasions with high-speed response requirements.

(4)Timeliness: The dynamic response time of motor acceleration and deceleration is short, generally within tens of milliseconds.

(5)Comfort: significantly reduce heat and noise.

4.Application

3 Axis Metal Round Pipe Plasma Cutting Machine
