CNC Plasma Square Tube&Pipe Cutter

8 axis cnc plasma square tube cutting machine with Hypertherm plasma cutting machine, cutting round pipe , square tube , rectangular tube for for steel structure construction, shipbuilding,building walls, bridges ect

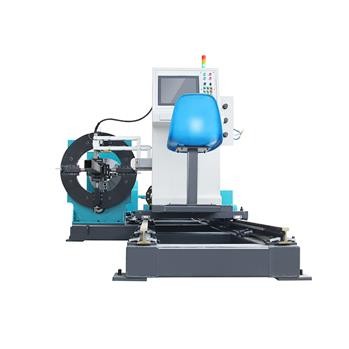

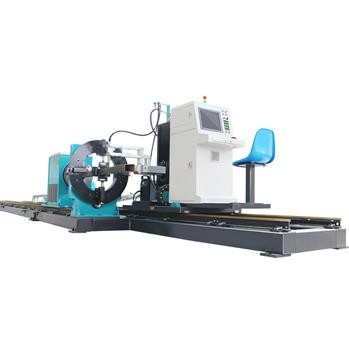

8 axis CNC Plasma Square Tube Cutting Machine

8 axis cnc plasma square pipe cutting machine can cut carbon steel, stainless and other material are widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries.

The Details Show

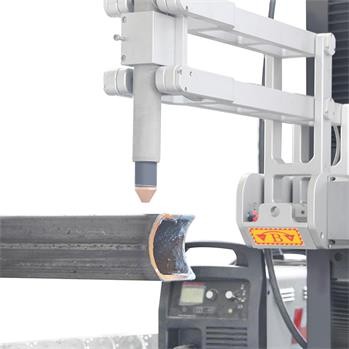

 1. CUTTING ARM

Aeronautical aluminum materialresistnt to high temperature and pressure

2.HEADSTOCK

The steel plate tailor-welded box structure design is adopted,and the structure is compact to improve the overall rigdity and strength.

3.24KG RAIL

The top surface and two side surfaces are precisely processed by a CNC grinder using 24KG grade 55Q ground rails to ensure the leveland parallelism of the moving torch.

4.ADVANCED SYSTEM

The system uses Pro-face SGP-2301HL handheld graphical operation intertace.lt has world-class safety protection functios:3-position enadle switch

The Product Parameters

Model

8 axis cnc plasma square pipe cutting machine

Square tube

Width 40-400mm , cutting length 12000mm

Round pipe

Diameter 50-630mm ,cutting length 12000mm

Cutting method

Plasma & flame

Plasma power

Hypertherm 125A plasma power ,

For 1-25mm

Flame cutting thickness

6-60mm

Plasma cutting speed

500-3500mm/min

A axis Bevel angle

±45 degree

B axis Bevel angle

±45 degree

Plasma bevel thickness

6-14mm

Flame bevel thickness

6-40mm

Control system

control system

Computer

Taiwan Advantech Industrial Computer

Driving motor

Japanese Panasonic Servo motor with reducer

Software

Pipe Nest software

Load

8t

                                    Weight and size

Size

(Length *width*height) 12000*2200*2100mm

Weight

7t

Shipping

40ft container

Cutting Sample

Customer Site
