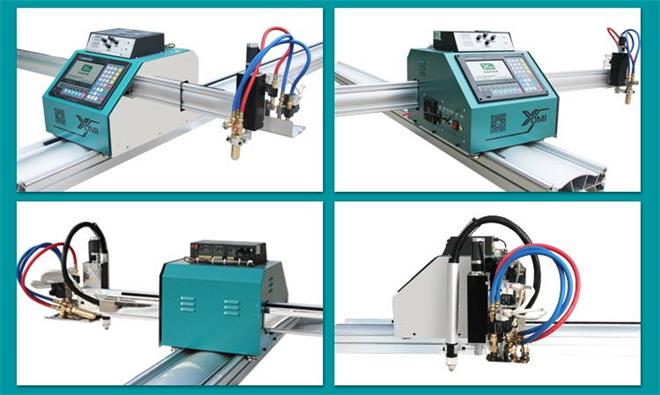

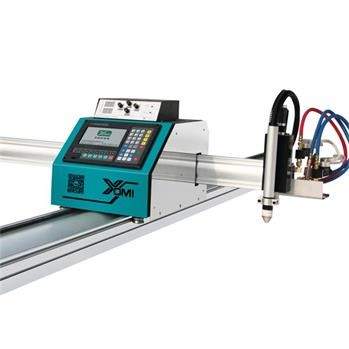

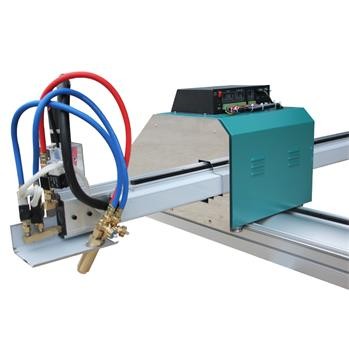

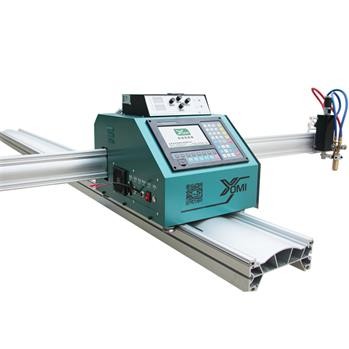

Portable CNC plasma cutting machine for plate sheet

Portable CNC Plasma Cutting Machine is an automatic portable CNC machine with THC. The cutting control system can control the motion of 2 axis, which is suitable for flame or plasma cutting. The THC controller is designed to change the height between torch & workpiece. This kit is accurate,stable, low noise, while easy to operate. With graphic to guide your use, come with 2 booklet of user manual to explicitly guide your operation.

Portable plasma cutting machine for plate sheet

Portable Plasma Cutting Machine is an automatic portable CNC machine with THC. The cutting control system can control the motion of 2 axis, which is suitable for flame or plasma cutting. The THC controller is designed to change the height between torch & workpiece. This kit is accurate,stable, low noise, while easy to operate. With graphic to guide your use, come with 2 booklet of user manual to explicitly guide your operation.

portable cnc plasma cutting machine

portable cnc plasma metal cutting

Our Advantage

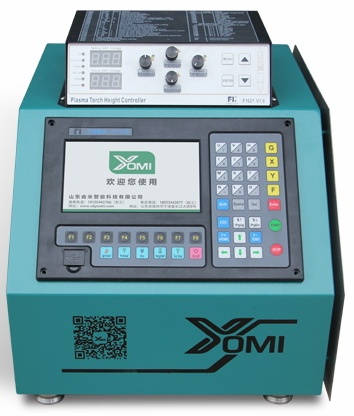

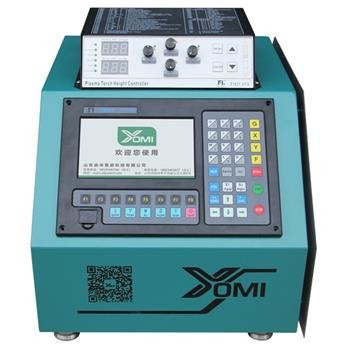

1. CNC SYSTEM

Equip with Shanghai Fangling F2100B CNC operating system

humanized design and simple operationThe system comes with 48graphic , which can cut directlyby inputting plate size.Using industrial-grade ARM7 processing chip, 7-inch colorLCD display

portable cnc plasma metal cutting machine

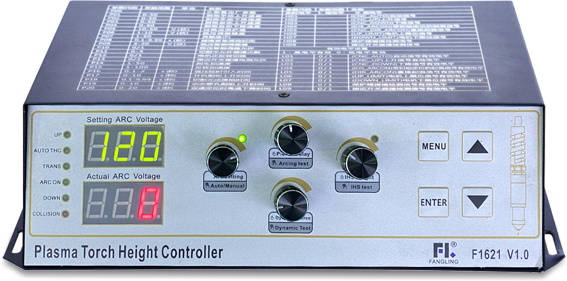

2.TORCH HEIGHT CONTROLLER

Equip with Shanghai Fangling 1621 arc voltage regulator.

Manual operation function: automatic, manual up and down, initialpositioning test Automatic operation: After cutting program sends out the arc start-ing signal, the arc voltage height regulator automatically completesthe initial positioning

portable cutting machine

3. STARCAM NESTING SOFTWARE

Support common edge cutting, short-linecontinuous cutting and bridge cutting.

Support multi-sheet manual matrix nesting, scheme nesting, combi-nation nesting, automatic nesting and common edge nesting. Support automatic lead-in and lead- out joining and lead movement.

plasma portable cutting machine

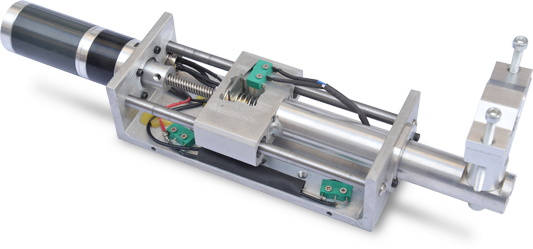

4.LIFTING BODY

Adopt T YHE penmanent magnet DC planetary gear motor. Cast aluminum structure, light material, not easy to deform. Equipped with upper and lower limit switches to prevent damage tothe components caused by operating errors. Plasma positioning adopts micro switch, with low failure rate.

cnc portable plasma cutting machine

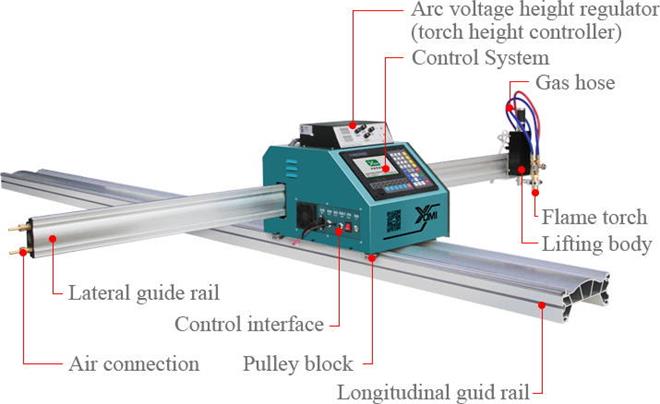

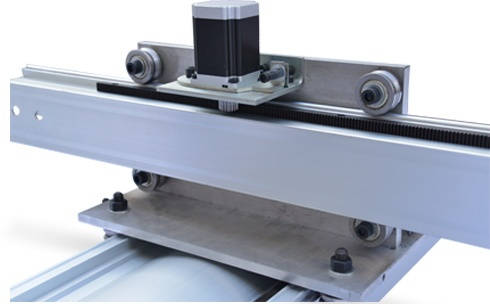

5.MECHANICAL STRUCTURE

The bottom plate of beam uses bearing pulley block, 4 pcs V39 bear-ings to bear the force. Ensure the machine moves stable and service life long.

cnc portable plasma cutter

Parameter Configuration

Technical Parameters

Machine Voltage

Signal phash 220V ,50HZ

Plasma power Voltage

380V 3 Phase,50HZ

Cutting mode

Plasma+Flame

Effective cutting range(mm)

1500mm×3000mm

Cutting speed(mm/min)

50-3500mm/min

Rotational Speed

0-5000mm/min

Plasma power

China LGK-120A/200A/300A Hyperthem 80/105/125A

Plasma cutting thickness

According models

Moving precision

±0.2mm/min

Cutting system

Fangling F2100B

THC

Fangling F1620

Software

ProNest8(standard)

Total weight(kg)

150kg

Emergency stop

Yes

Working temperature

-5~45℃

Relative humidity

<95% No condensing

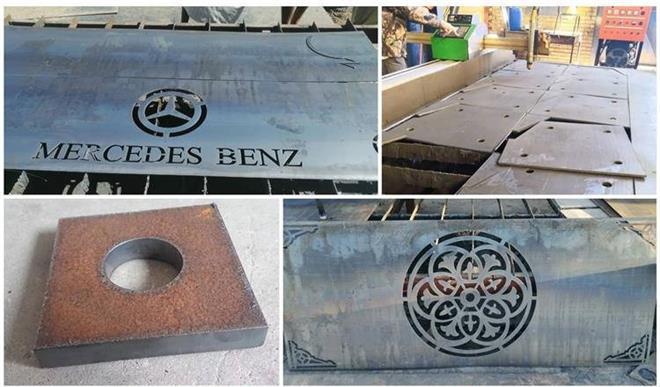

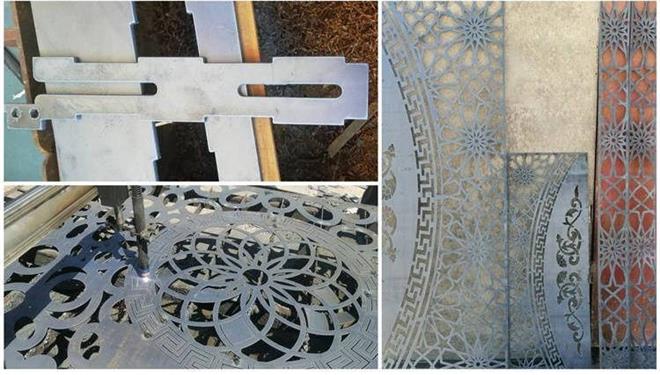

Cutting Sample

portable plasma cnc cutting machine

portable plasma pipe cutting machine

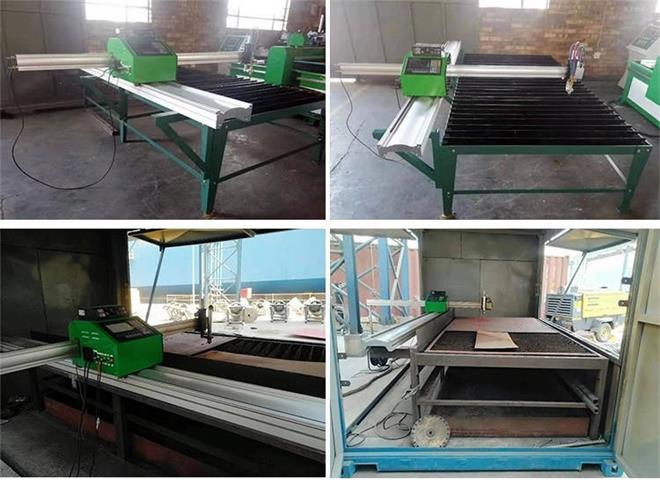

Customer Site Display

portable plasma cnc cutting machine

Packing&Shipping


portable cnc plasma metal cutting machine

portable metal plasma cutting machine
