Beam flange straightening machine (mechanical)

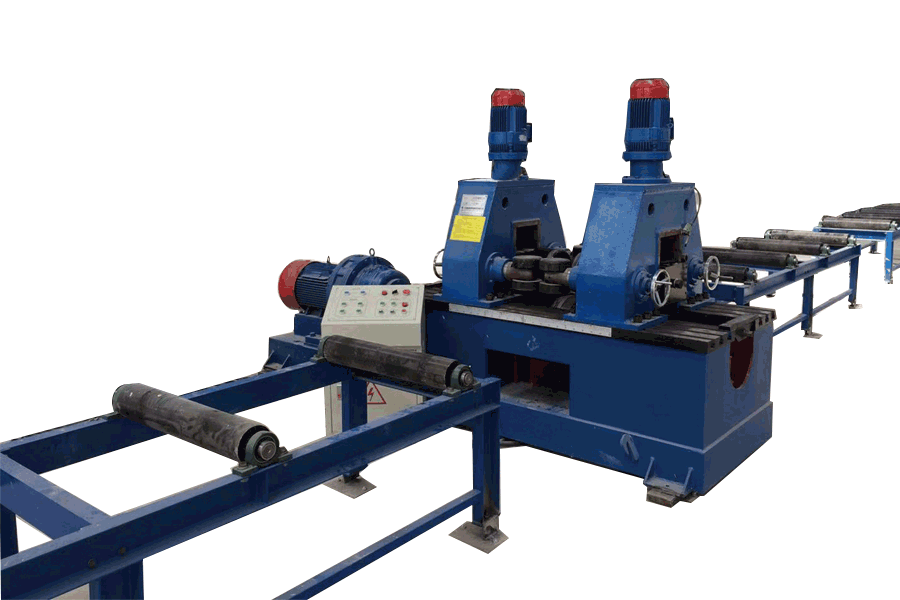

H-beam flange straightening machine (mechanical)

Features

Mainly correct the deformed wing plate of H-beam after welding.

The straightening rollers are all made of high-quality alloy steel, and through advanced heat treatment, the defects that the parts are prone to cracks are avoided.

Easy to operate, safe and reliable, the position of the correction wheel is adjustable, and the flange plates on both sides of the H-beam can be corrected at the same time, which greatly improves the processing efficiency.

Product Parameters

Model:KR-HYJ-40
Flap width:200-800mm
Minimum height of web:6-40mm
Minimum height of web:200mm
When the height of the web is 200-350mm and the thickness of the wing plate is less than 16mm, use the straightening auxiliary roller
Correction speed: 7.8m/min
Switchboard power:25KW(main motor22KW)
