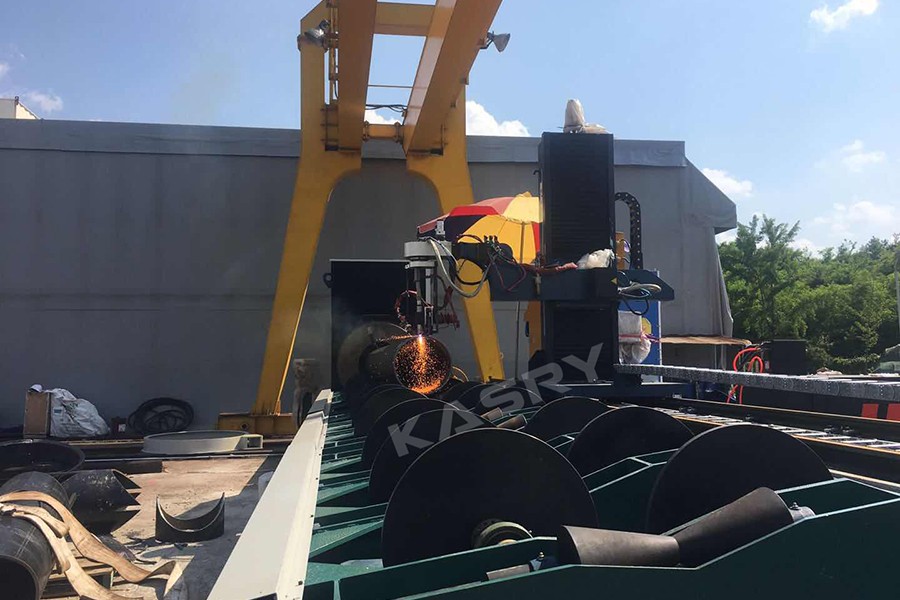

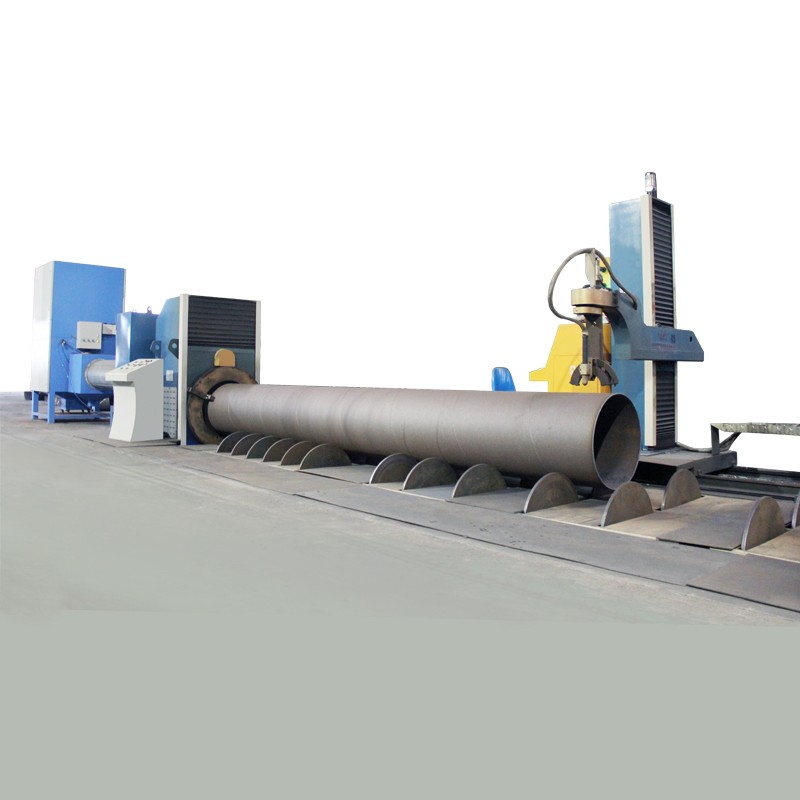

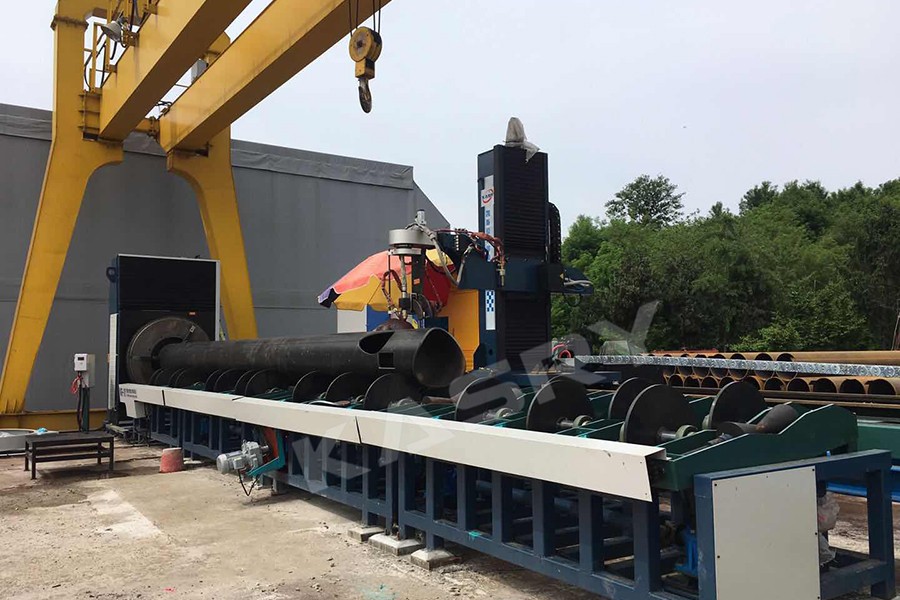

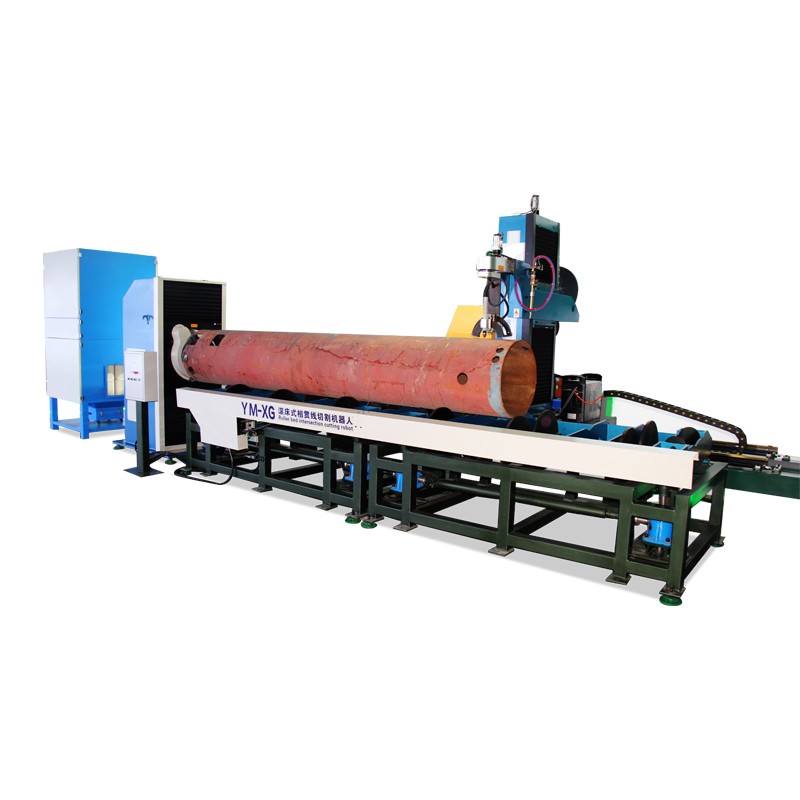

Bench Type Large Pipe CNC Plasma Cutting Machine Visual operating platform. Simple and intuitive operation software, 3D synchronous simulation of cutting workpiece path.
Features
★Visual operating platform. Simple and intuitive operation software, 3D synchronous simulation of cutting workpiece path.
★ Pay attention to efficiency and increase efficiency. The electric chuck is used to lift and lower the material without adjusting the level, which is very fast and suitable for the cutting of large pipe diameters and heavy workpieces.
★The fan-shaped head device is used to improve the cutting efficiency of thick-walled pipes by 2-3 times and improve the surface finish of the cutting workpiece.
★Perfect docking with Tekla, no need for secondary disassembly
Product Parameters
| Round Pipe diameter: | 219-1210mm 325-1620mm 630-2000mm |
| Cutting range: | 6m（length can be customized）* 6、9、12m |
| Cutting method: | Plasma/Flame |
| Machine size: | 7800*1800*2000mm |
| Cutting speed: | 10-2000mm/min |
| Cutting thickness: | flame: 6-60mm plasma: according to the power supply |
| Flame cutting speed: | 20-700mm/min |
| Plasma cutting speed: | Determined by plasma power |
| Software: | KASRY PIPE APPLICATION SOFTWARE |
