Large Diameter Pipe Cutting in Offshore Construction

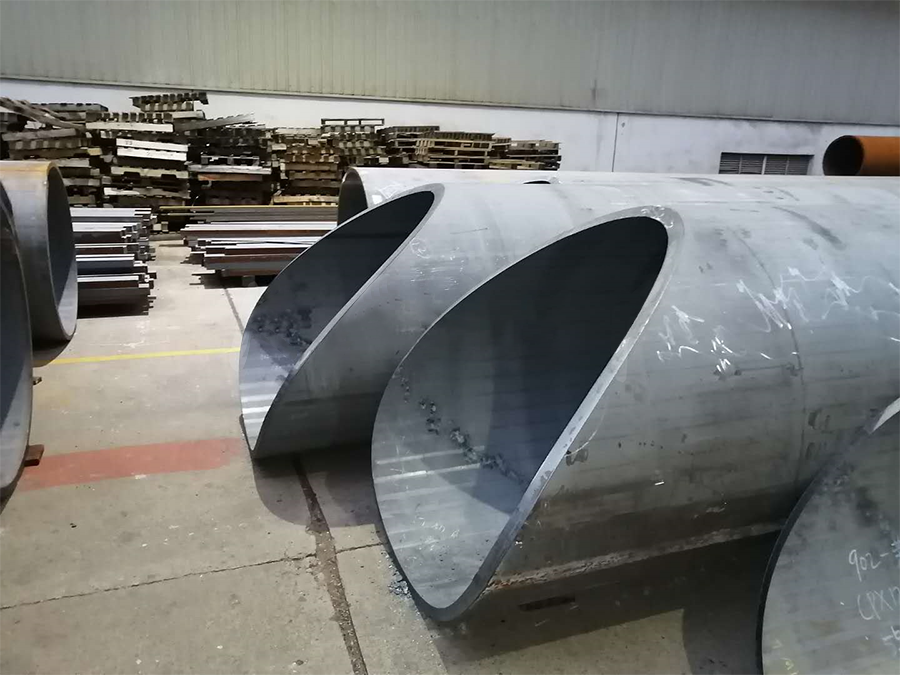

Mainly used for pipeline industries, joint point cutting and end part cutting.
Workpiece materials apply range: Mild steel( stainless steel,copper andnickel pipes,cut by plasma)
Widely used in water/chemical oil&gas pipeline industries, marine engineering, offshore buildings,boiler&vessels,heat exchangers,etc.

Large Diameter Pipe Cutting Machine in Offshore Construction

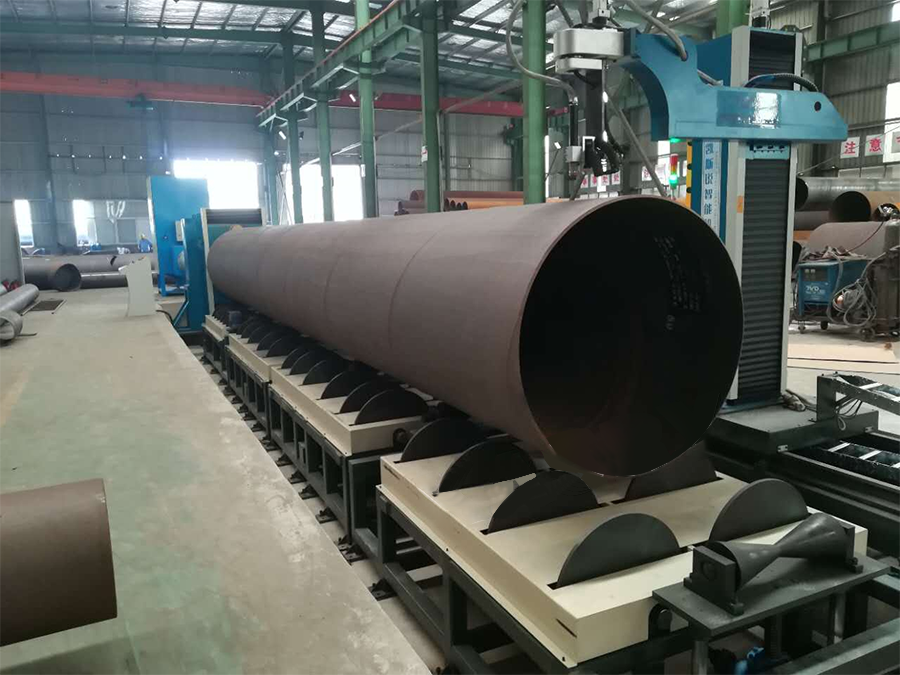

The Details Show

  • Yomi Professional Tube Optimization Cnc System, Using Autocad Version of Engineering Design Can Directly Generate G Code.

  • Support Tube Optimization Functions Such As in Charge/image/left and Right Replacement

  • Support Tekla Software Seamless Link, Generate Cnc Processing Code.

  • Adopt Shaft Type Lifting Structure, the Main Characteristic is the Chuck Floating Center Adjustable, at the Same Time Using the Tube is Not Moving.

  • The Center-height of the Chuck is Floating Adjustable,using Method As Chuck Floating Without Moving of Pipe,to Improve the Cutting Quality of Large Diameter Pipe.

  • Can Load Heavy Weight Pipe,there is No Deform for Using Longtime.

  • Support Automatic Loading and Feeding, Improve the Working Efficiency, Save the Time.

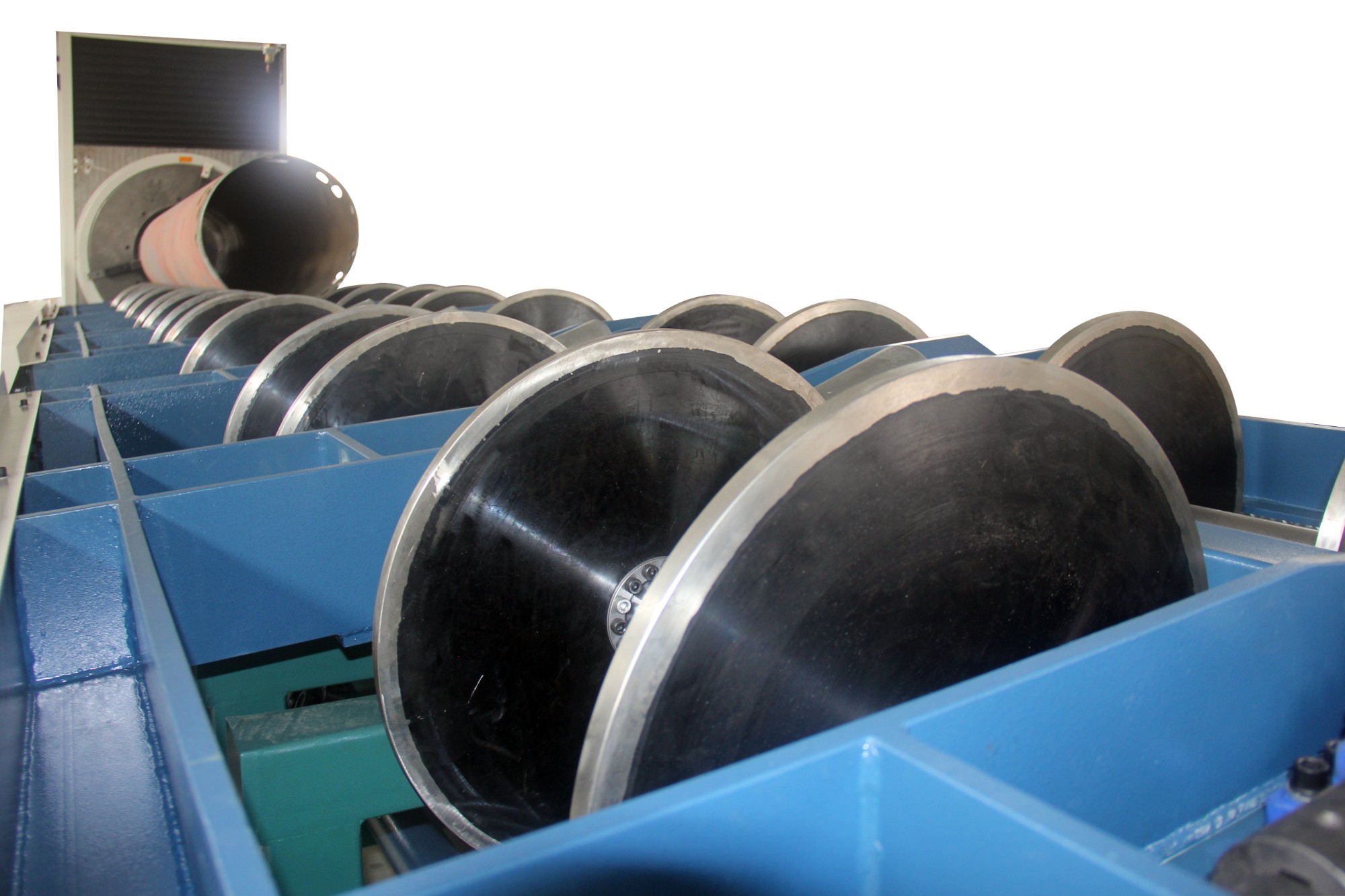

  • Roller Type, the Center Height of Chuck is Adjustable,greatly Improve the Cutting Quality and Precision for Big Pipe.

  • Chuck Floating Method Greatly Improves Large Diameter Cutting.roll Body Can Automatically Transport Cutting Tube.

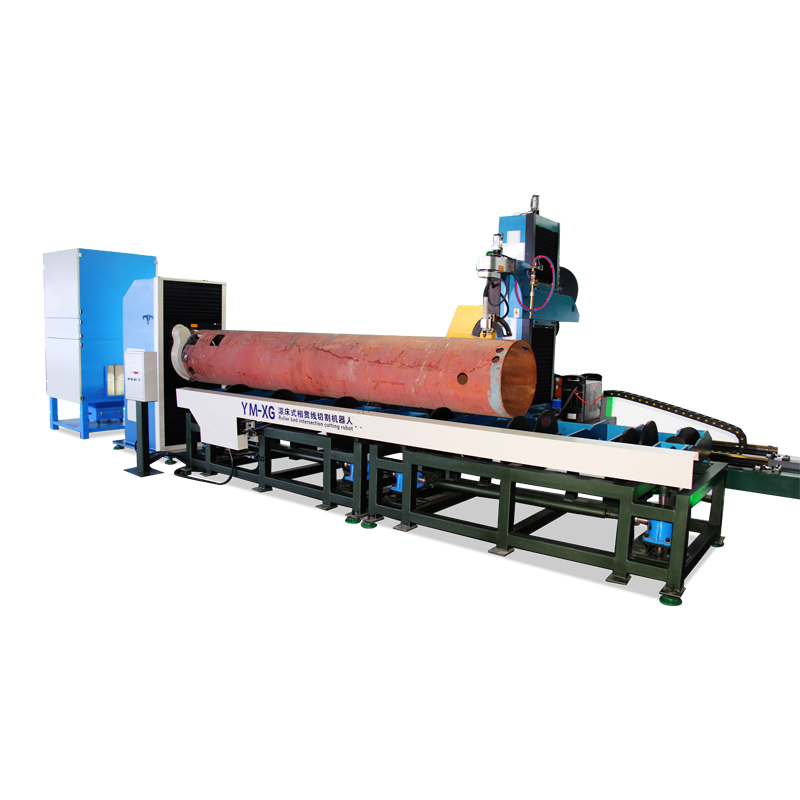

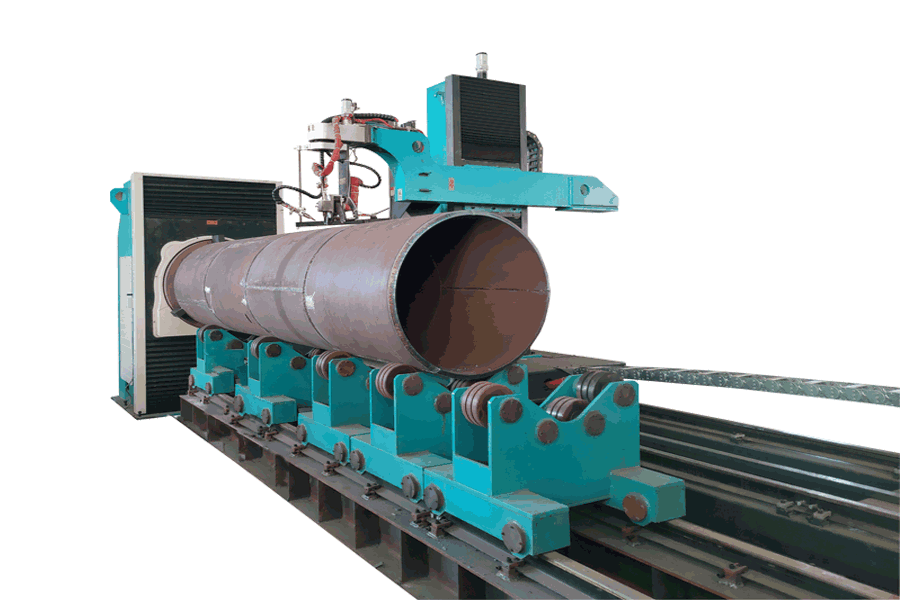

  • Large Diameter Pipe Cutting Machine

  • Cutting diameter

    219-1210mm、325-1620mm、630-2000mm

    Cutting length

    6m、9m、12m( length can be customized )

    Machine size

    7800*1800*2000

    Cutting method

    flame/plasma

    Plasma cutting thickness

    according to the selected plasma power

    Flame cutting thickness

    6-60mm

    Flame cutting speed

    20-700mm/min

    Control system

    Advantech industrial computer

    Plasma cutting speed

    according to the selected plasma power

    Driving method

    SERVO

    Software

    YOMI PIPE apply software

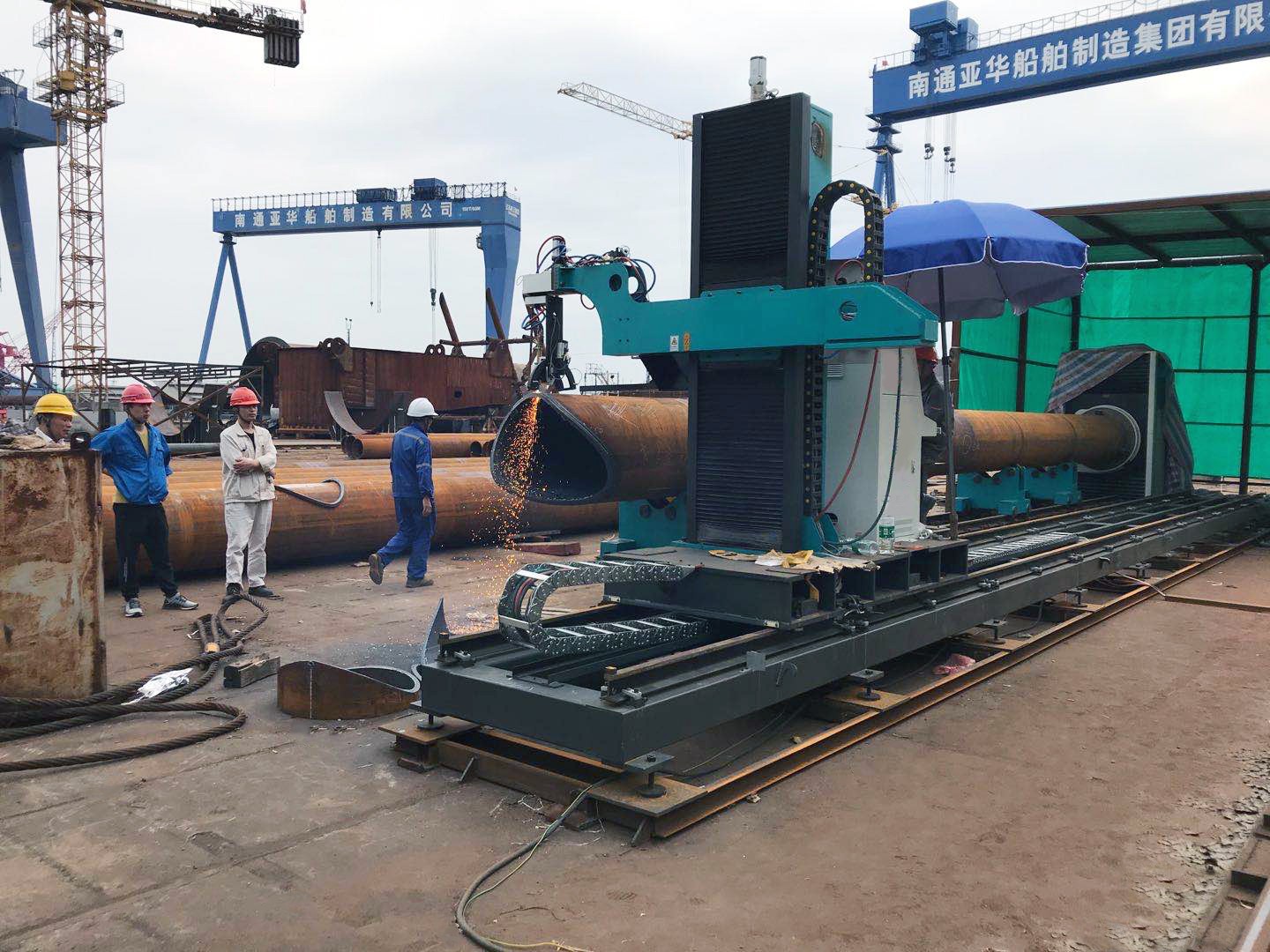

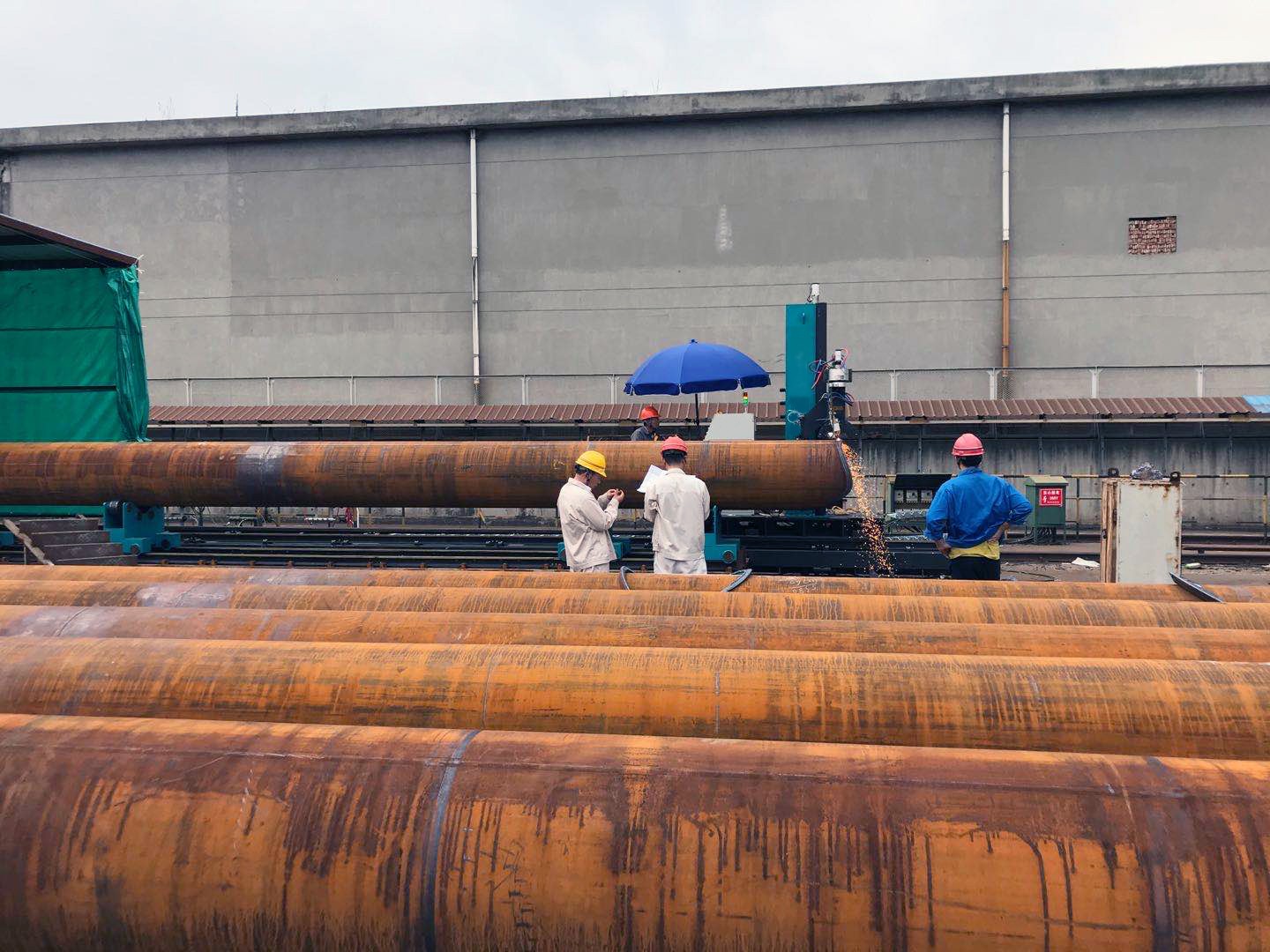

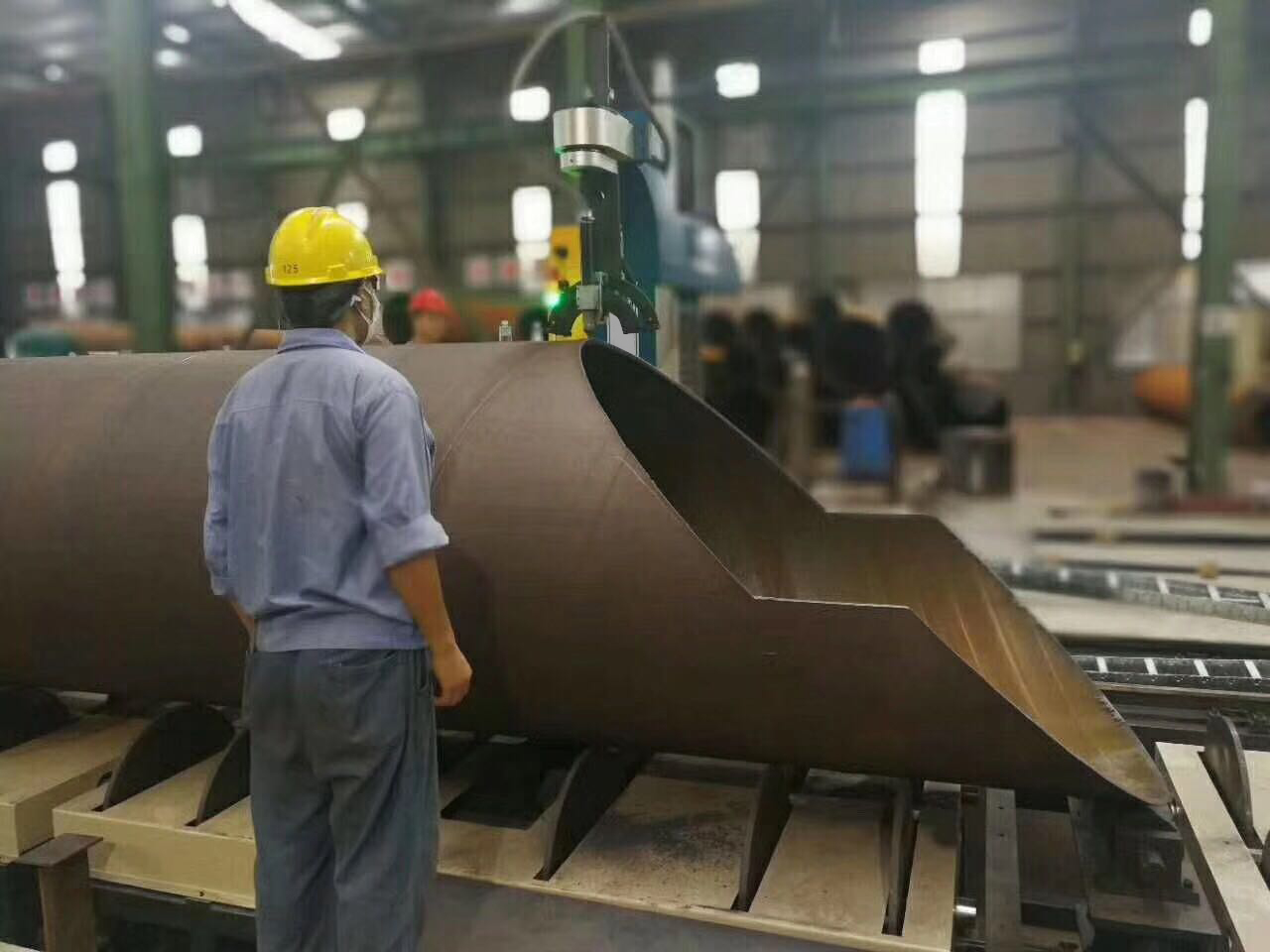

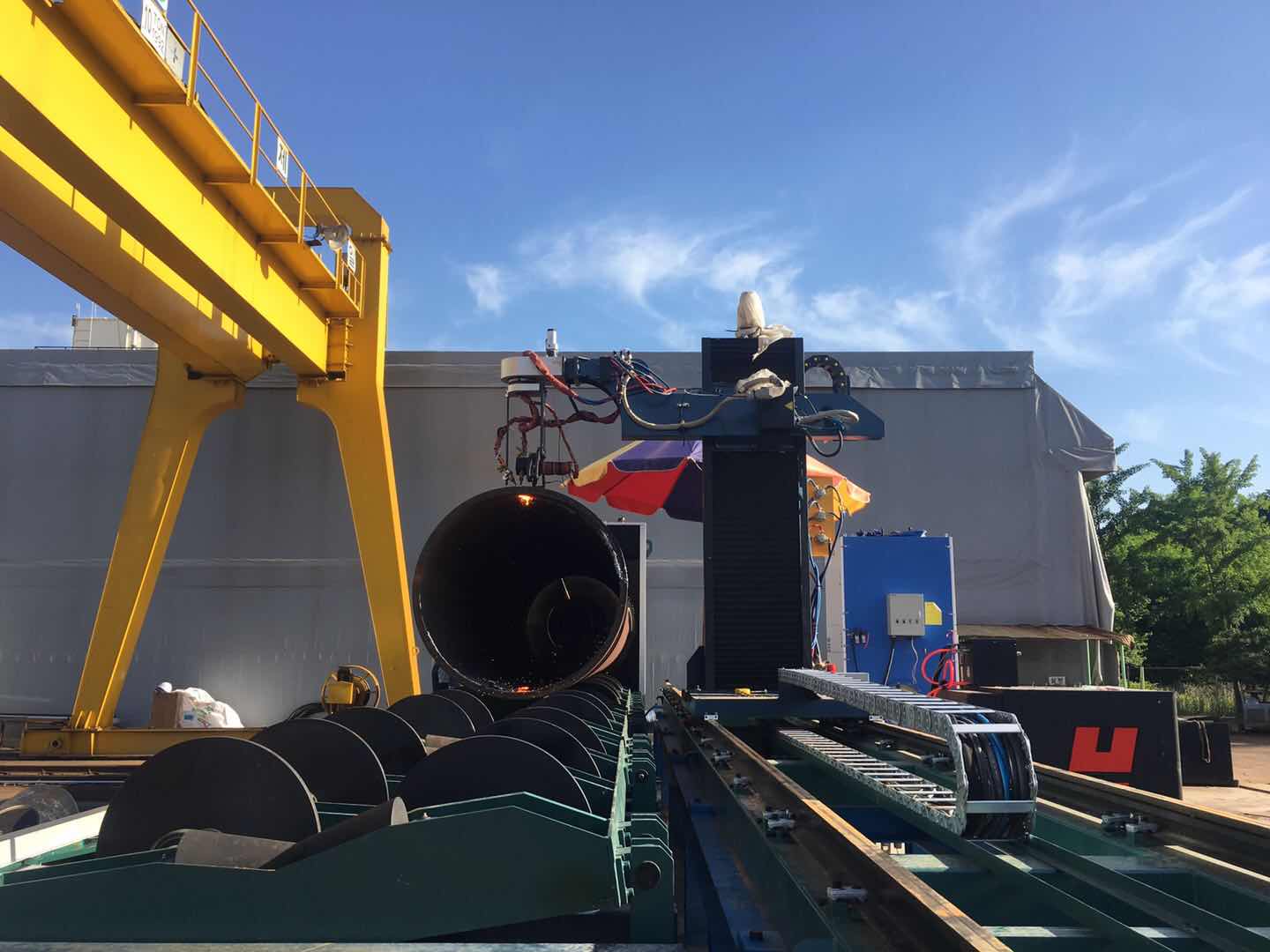

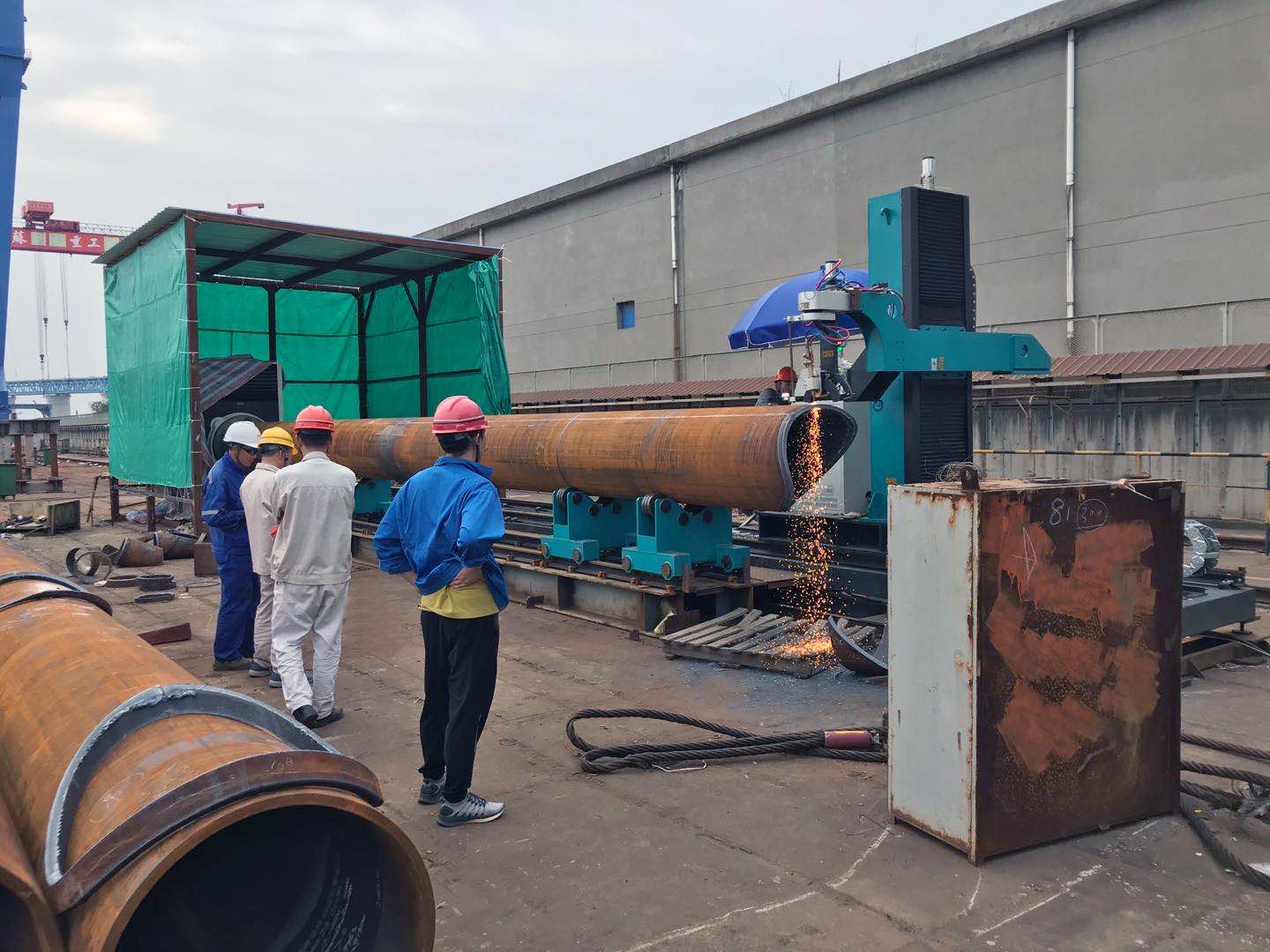

Customer Case

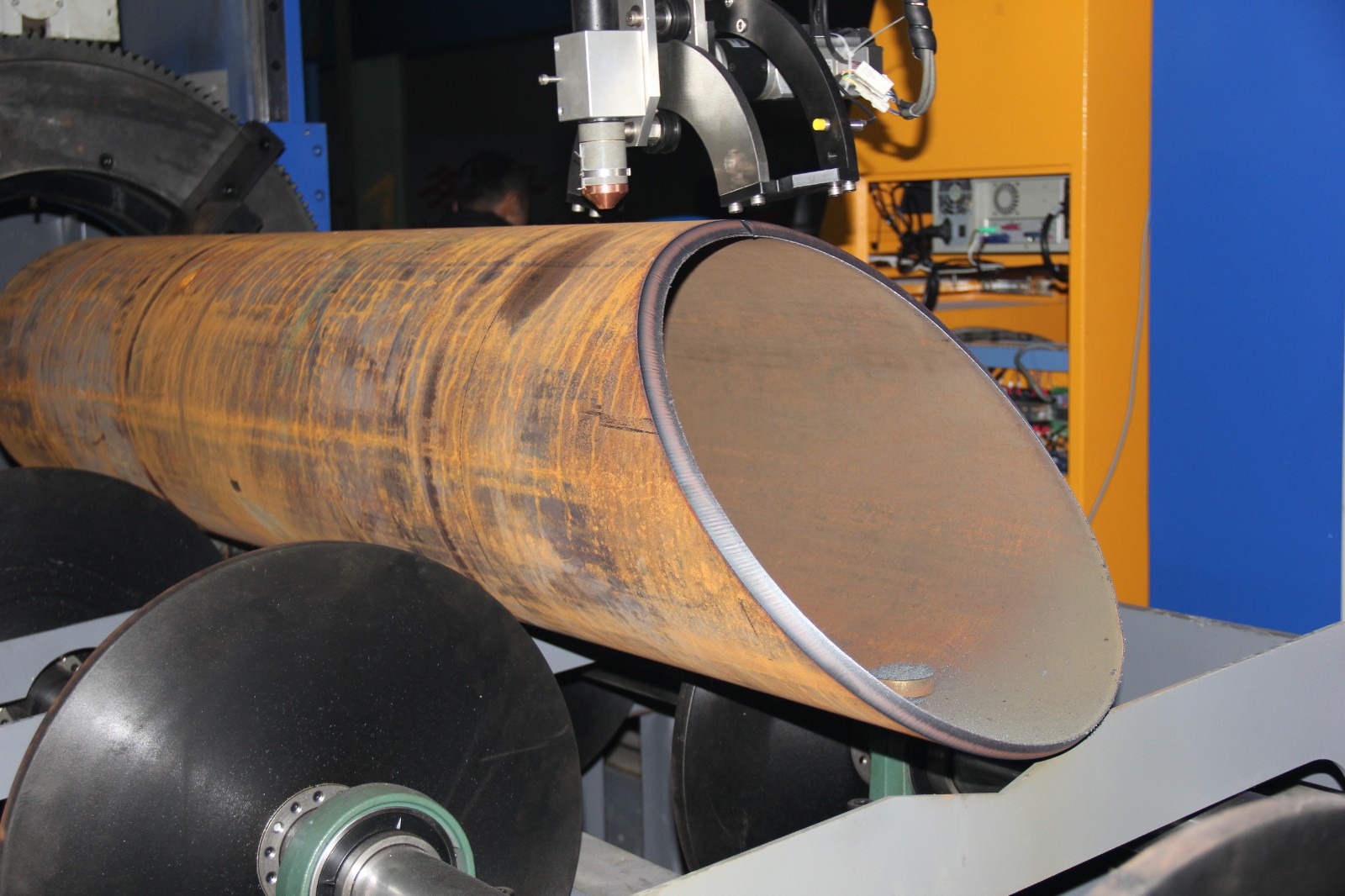

steel pipe plasma cutting and beveling machine

cnc pipe plasma cutting machine

cnc steel pipe plasma cutting machine

cnc pipe profile cutting machine

cnc pipe cutting machine

plasma pipe cutting machine
