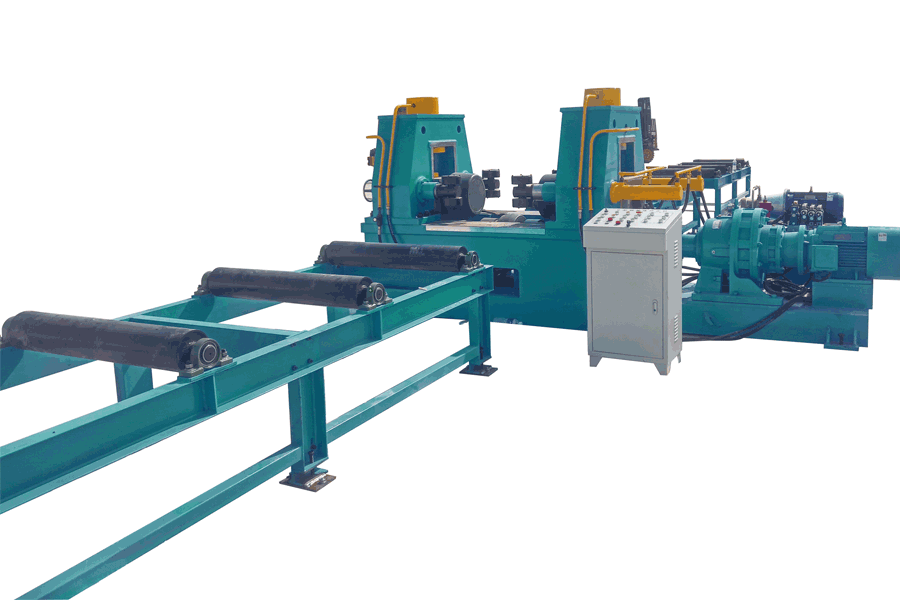

Flange Straightening Machine (Hydraulic Horizontal)

H-beam flange straightening machine (hydraulic horizontal)is straightened with both flange plates at the same time.

Features

★The machine is straightened with both flange plates at the same time.

★It not only reduces the workload of overturning and moves and improves the efficiency, but also the correction quality is better than that of the vertical correction method, and it can also significantly correct the non-perpendicularity of the wing plate and the web plate.

★All straightening rollers are made of high-quality alloy steel, and through advanced heat treatment process, the long service life of each straightening roller is ensured.

Product Parameters

Model: KR-WYJ-40/60
Component material: Q335
Flap width: 200-800mm
Flap thickness: 6-40mm   6-60mm
Minimum height of web:300mm
Correction speed: ≈4500mm/min
Flange width: 200-800mm
Web height: 2000mm
Maximum pressure of hydraulic system: 30MPa
Conveyor roller motor power: 4kw*2
Total power:40kw
