cnc plasma flame cutting machine

Multi torch straight strip cnc plasma flame cutting machine is characterized of stable running and high efficiency, can be widely applied for strips cutting of carbon steel, manganese steel and other materials.

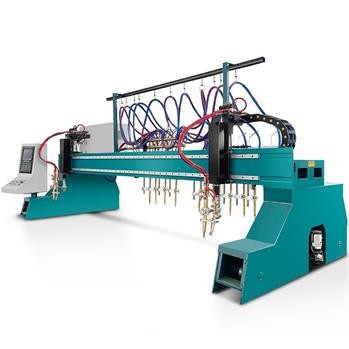

Multi torch straight strip cnc plasma flame cutting machine

Multi torch straight strip cnc plasma flame cutting machine’frame use gantry structure, bilateral drive to improve cutting quality. Host N Group front torch for longitudinal straight cut back a set of lateral torch for straight cuts, improve cutting efficiency. Multi torch straight strip cnc plasma flame cutting machine can configure torch number, longitudinal and transverse cutting configured according to user needs, can be cut more once to walk one time.

cnc plasma flame cutting machine

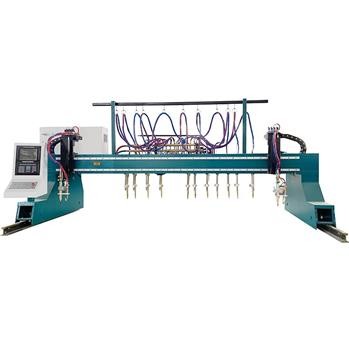

Multiple Strip Gas Cutting Machine CNC Plasma Flame Cutting Machine

1. Main Frame: All frames adopt 8mm thickenss steel plate, making sure high mechanical strength and deformation resistance to guarantee the cutting precision.

2.Front Beam adopt 20mm thickness steel plate and processed by large cnc milling machine at one time which increase flatness and smoothness of surface to ensure the cuting  precision.

3.The gear rack groove and guid rail groove on the front beam are processed by cnc milling machine at one time, which make sure plasma and frame torches move stable and cut accuracy.

4.Hollow Design: The beam adopts hollow design to avoid frame deformation caused by heat .

The Details Show

1. Heavy gantry structure and hollow steel plate welded frame

Bilateral drive, beam adopts plate tube welding structure,Facilitate heat dissipation and prevent thermal deformation. The machine body is shot blasted and sprayed with a long service life.

2.Multiple sets of straight cutting torches

This machine is mainly used in steel structure industry. It can be equipped with multiple sets of straight cutting torches to cut steel plate into structural parts required by steel structure. It has features of fast cutting speed, high efficiency and less deformation.

3. Shanghai Fangling 2300B System

10.4 inch LCD screen, high integrated motherboard material, good stability

4.Automatic programming nesting software

Without basic knowledge, customers can easily load DXF graphics into the software. Or use our integrated CAD-system STAR CAMCad to create graphics. Process data will be automatically generated through CNC CUT graphics. The software will also provide the best processing path, and this processing path can be changed at any time as required

5.Automatic electronic ignition and configurable capacitor height controller

The automatic ignition adopts ignition needle type, which greatly extends the service life, high degree of automation, reduces the labor intensity of workers, improves safety, and the advantages of multiple cutting torches are more prominent.The capacitor height controller ensures that the cutting torch and plate maintain a certain height, the operation is convenient for workers, and the service life of cutting nozzles are prolonged.

6.Optional plasma and flame cutting method

Choose suitable cutting method according to material and thickness.

7.24KGS heavy-duty high-strength heat-treated guide rail

High precision, strong load carrying capacity

The Product Parameters


Model

Multi-torches CNC Cutting Machine

Cutting area

3.15*8mcan be customized

Machine size

4*10m(according to customers’ needs)

Cutting method

Flame/Plasma

Cutting thickness

Flame cutting: 6-150mm

Plasma cutting: according to plasma power

flame cutting speed

20-700mm/min

Ignition mode

Automatic ignition

Plasma cutting speed

According to plasma power

Plasma torch anti-collision protection system

Yes

Driving method

Servo or stepper

Software

Starcam

Working condition

Working pressure of compressed gas

7Mpa

Required gas flow of plasma

4500L/H

Working environment

Ventilation, no concussion

Power voltage

5KW(not include plasma power)

Types of gas

Acetylene Propane
