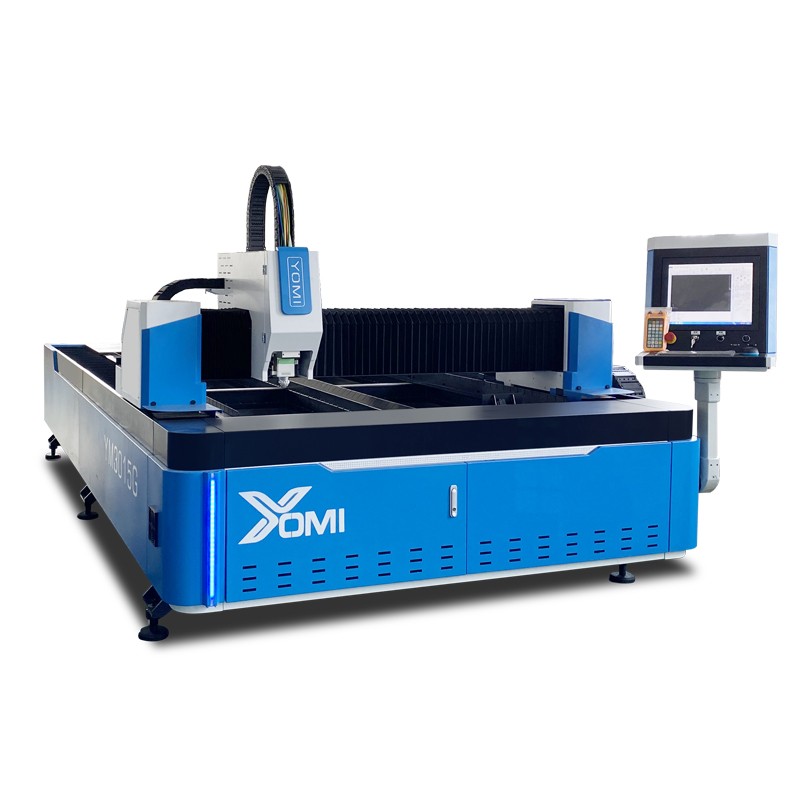

Fiber Laser Cutting Machine

laser cutting machine, fiber laser cutter, metal laser cutter, fiber laser cutting machine for metal

1、1000W Processing Capability


Material

Thickness

Auxiliary gas

carbon steel

12mm

Oxygen/air

stainless steel

4mm

Nitrogen/air

aluminium alloy

3mm

Nitrogen/air

brass

3mm

Nitrogen/air

2、Some technological parameters

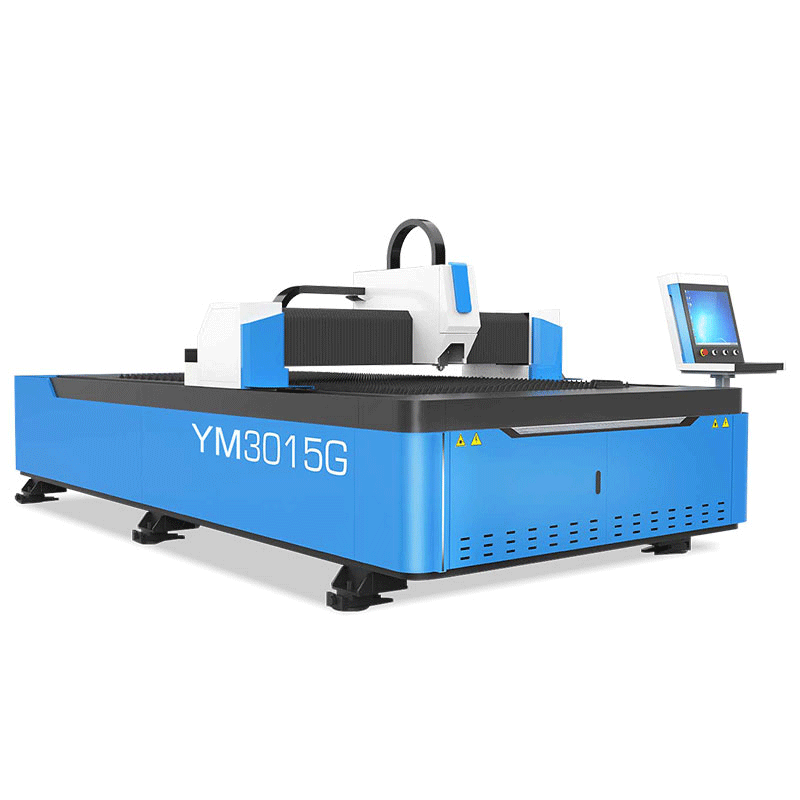

Equipment model

YM3015G

Type of laser

Optical fiber laser

Laser working medium

Fiber

Laser wavelength

1060-1080 mm

Rated output power

1000W

Beam quality

0.373mrad

X-Axis travel

3000mm

Y-Axis travel

1500mm

Z-Axis travel

100mm

Effective cutting range

3000×1500mm

Table axial positioning accuracy

±0.05mm/m

Table Repeated positioning accuracy

±0.02mm/m

Maximum no-load running speed

80m/min

Power rating parameters

Three-phase AC  380V 50Hz

Power of equipment

11 K W

Total power protection level

IP54

Auxiliary Gas

Oxygen, Nitrogen, Compressed Air

Working life of fiber module

More than 100000 hours

Packed size

4626*2460*1734 mm (L*W*H)

Gross weight

About 2500 kg



3. Product advantage

 1000W Optical Fiber Laser Cutting Machine has professional laser optical system and imported lenses, stable and reliable (laser quality assurance for two years)

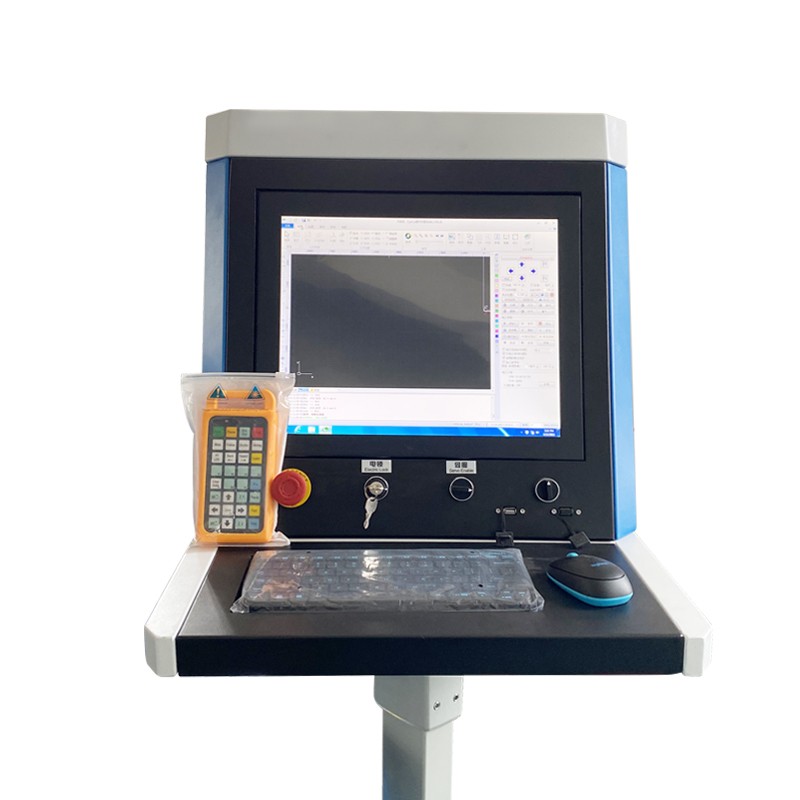

 1000W Optical Fiber Laser Cutting Machine has eEfficient and stable programming and control system, easy to learn and humanized, compatible with a variety of CAD drawing formats, intelligent layout, cost savings, automatic cutting path matching to save processing time (gift automatic layout software set).

1000W Optical Fiber Laser Cutting Machine has low energy consumption, low use cost, high stability of equipment, simple and convenient maintenance and low maintenance cost.

 No die, flexible processing, 1000W Optical Fiber Laser Cutting Machine can meet the processing requirements of various special-shaped workpieces.

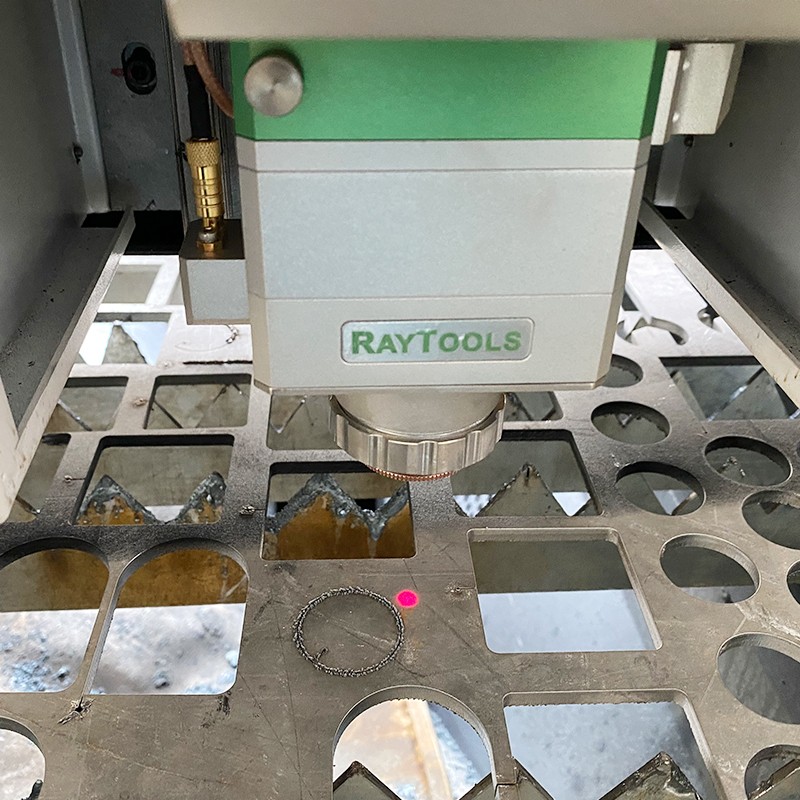

 High cutting efficiency, high cutting quality, no noise; high speed, high efficiency, cutting sheet per minute speed up to 30 meters; cutting edge quality, small deformation, smooth appearance, beautiful;

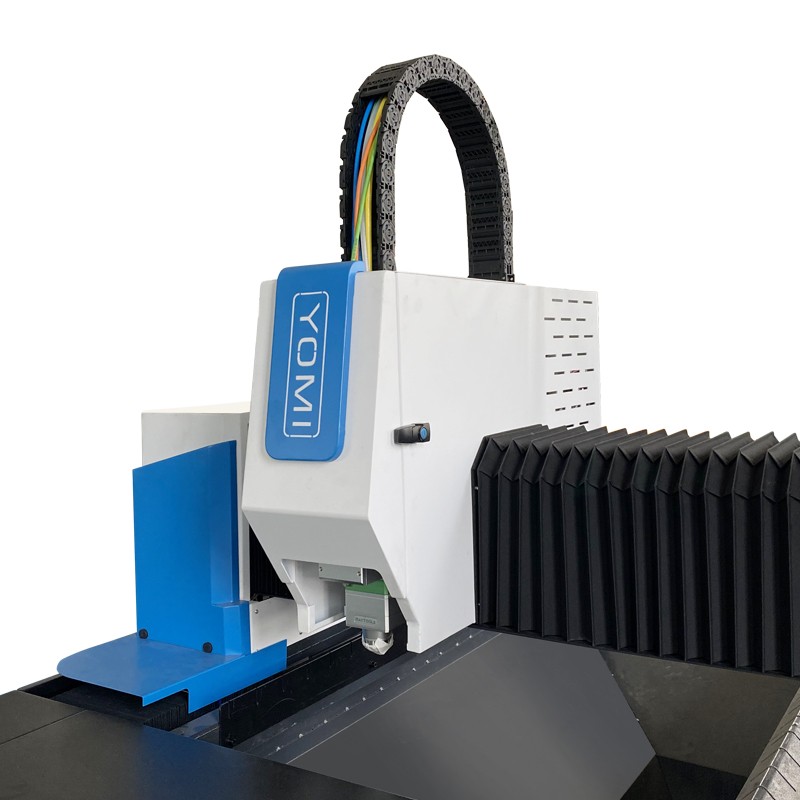

 1000W Optical Fiber Laser Cutting Machine has imported high-precision servo motors, guideways, German origin gear and rack, while ensuring processing efficiency and accuracy, greatly improve the stability and reliability of equipment operation.

4Applicable materials and industrial applications



1000W Optical Fiber Laser Cutting Machine is specially used for cutting 0.5-12mm carbon steel; 0.5-4mm stainless steel, galvanized steel; 0.5-3 mm aluminum alloy; 0.5-3 mm brass and various other thin metal.


1000W Optical Fiber Laser Cutting Machine is widely used in kitchen appliance electric control box, mechanical equipment, electrical equipment, lighting hardware fittings, elevator manufacturing auto parts, display equipment, hardware and metal processing.

5. Customers Cases

6. Our Services

● Free warranty for three years for laser source and laser head and two years warranty for machine main part (except for the protective lens, nozzle and other vulnerable parts), life-long maintenance.

● Warranty counts from the date marked on the label of the laser source and machine. Our company will be free to repair the failure to meet warranty conditions under warranty (removing human-made damaged).

● Service after the warranty period: Our Company can provide service after the warranty period.

●Our Company will conduct regular visits or telephone interviews, to understand the customer's equipment usage.
