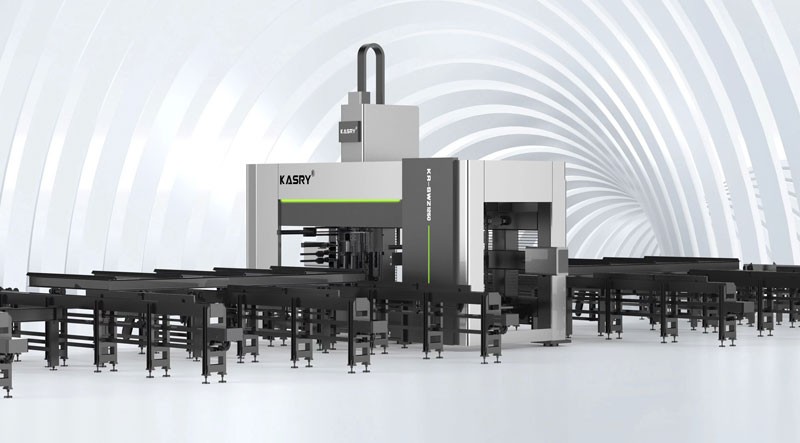

CNC H Beam Drilling Machine

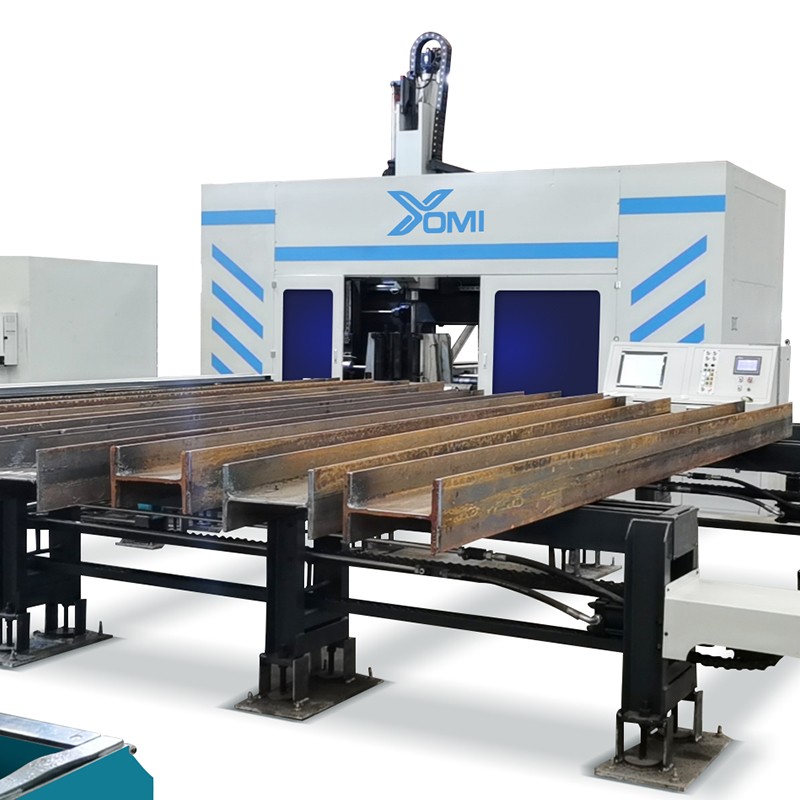

CNC H Beam Drilling Machine has seven CNC axes, each spindle can do CNC movement and drilling feed movement in two dimensions. The three power heads can be drilled at the same time, and the drilling head is driven by automatic control stroke.


CNC H Beam Drilling Machine

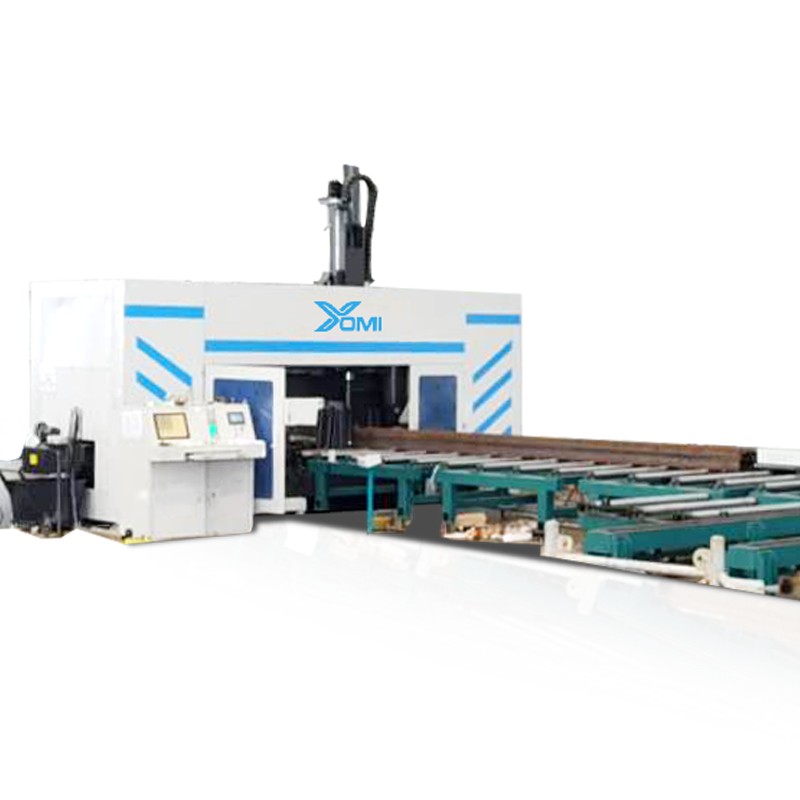

H beam 3D cnc drilling machine module group includes (workstation, roller frame, feeding trolley and trolley track, finished workpiece receiving table) conveyed H beam to the workstation through each transfer roller, and three sets of power drills respectively drill holes on H beam three sides , realizing cold processing for the hole group of steel connecting plate.

It is suitable for the processing of H beam and channel steel in steel structure. It has the characteristics of high precision and convenient operation. It is indispensable high-efficiency equipment for quality assurance in steel structure manufacturing.

CNC H Beam Drilling Machine

The Details Show

CNC H Beam Drilling Machine

1. Profiles Cold processing

The high-speed H beam drilling machine includes (workstation, roller frame, feeding trolley and trolley track, finished workpiece receiving table) for realizing section steel connecting plate hole group drilling .


CNC H Beam Drilling Machine

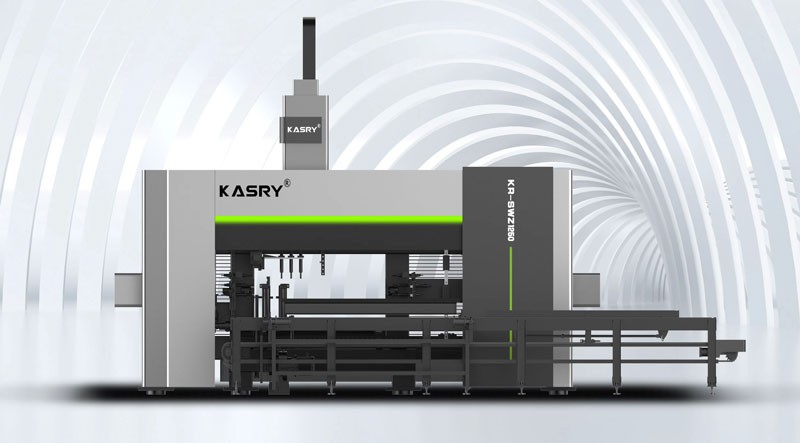

2.Overall Structure

The external shafts are driven by servo motors and are guided by precise linear guides to ensure the overall operation accuracy, simple operation in all directions, good stability and stable overall structure.


CNC H Beam Drilling Machine

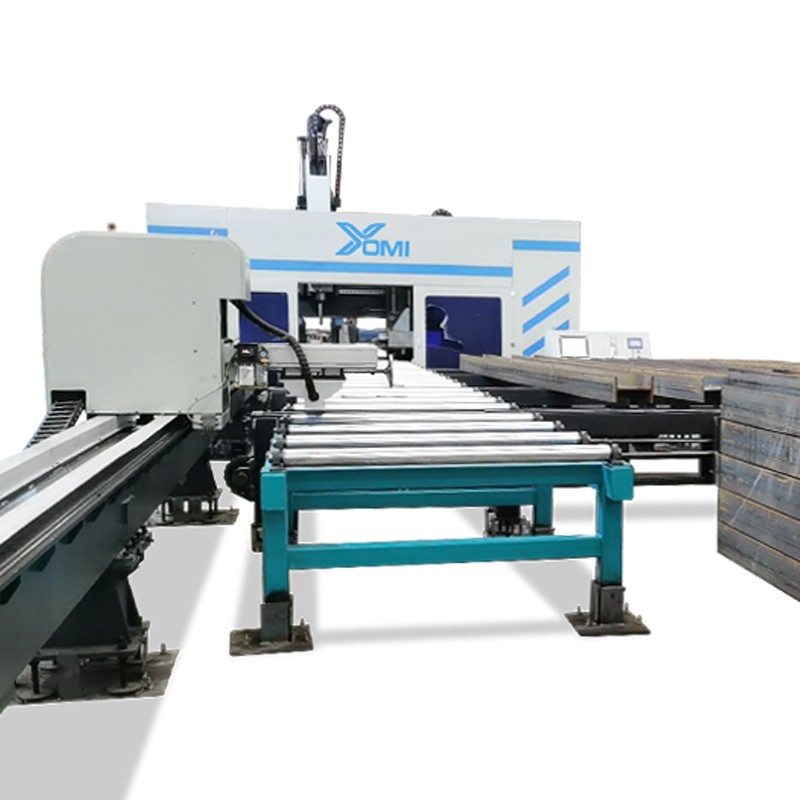

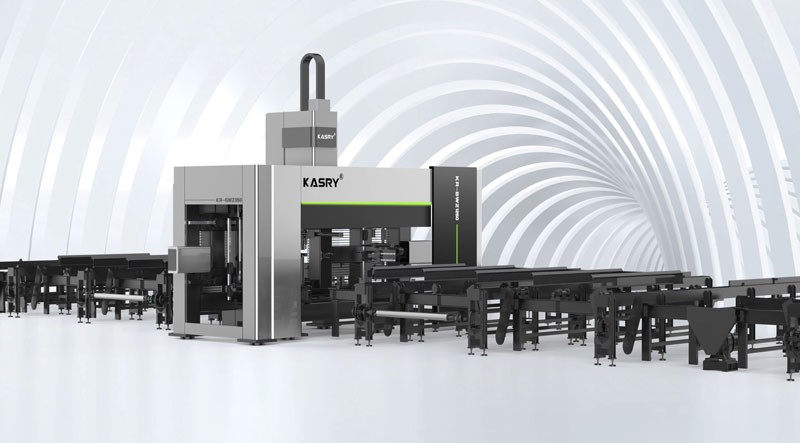

3.Feed roller frame

It is mainly composed of five sets of roller racks, unpowered rollers, and side positioning wheels. When raw material is put into the roller frame, it will send workpiece to side reference to ensure the accuracy of workpiece feeding. Features: simple structure, simple operation, high feeding precision and high efficiency.


CNC H Beam Drilling Machine

4.FINISHED WORKPIECE STORAGE AREA

The workpiece is feeding from drilling unit and then on power roller driven by motor and chain and then the finished product is directly stored by four sets of trolleys. Features: Provide remote control stations, improve drilling efficiency and save labors.


CNC H Beam Drilling Machine

5.Auto feeding

Features: Intelligent clamping, saving labor. The trolley track uses precision guide rails and racks, and the feeding is stable and accurate.


CNC H Beam Drilling Machine

6.Easy Operation

Online and offline programming methods; External information exchange through U disk; support TEKLA three-dimensional software DSTV files, directly export processing programs.


The Product Parameters

Item

Parameter

H Beam

Flange plate 100mm-600mm   Web Plate 200-1250mm

Maximum thickness of workpiece

40mm

Maximum drilling diameter

30~6000r/min

Effective feed length

12m

Maximum feed speed

9000mm/min

Precision

Adjacent hole distance (<640mm) error within ±0.5mm

Adjacent hole group hole distance (>640mm) error ±1.0mm/10000

Control 10 axes

X axis: web middle side positioning axis

Y axis: web middle side spindle rotation axis

Z axis: web middle side feed axis

U-axis: Flange fixed-side positioning axis

V-axis: Flange fixed-side spindle rotation axis

A-axis: Flange fixed side feed axis

B axis: Flange moving side positioning axis

C axis: Flange moving side spindle rotating shaft

W axis: Flange moving side feed axis

S-axis: external pipe axial horizontal feed axis

Positioning CNC axis moving speed

10~9000 mm/min

Maximum weight

10000Kg


Cutting Sample

CNC H Beam Drilling Machine

Customer Site

CNC H Beam Drilling Machine

CNC beam drilling machine,High-speed CNC 3D CNC drilling machine pris widely used in steel structure industries such as high-rise buildings, bridges, power station boilers, three-dimensional garages, offshore oil well platforms, and plant construction. It is especially suitable for the processing of H-beam and channel steel in steel structure industry. It has the characteristics of high precision and convenient operation. It is an indispensable high-efficiency equipment for quality assurance in steel structure manufacturing industry.
